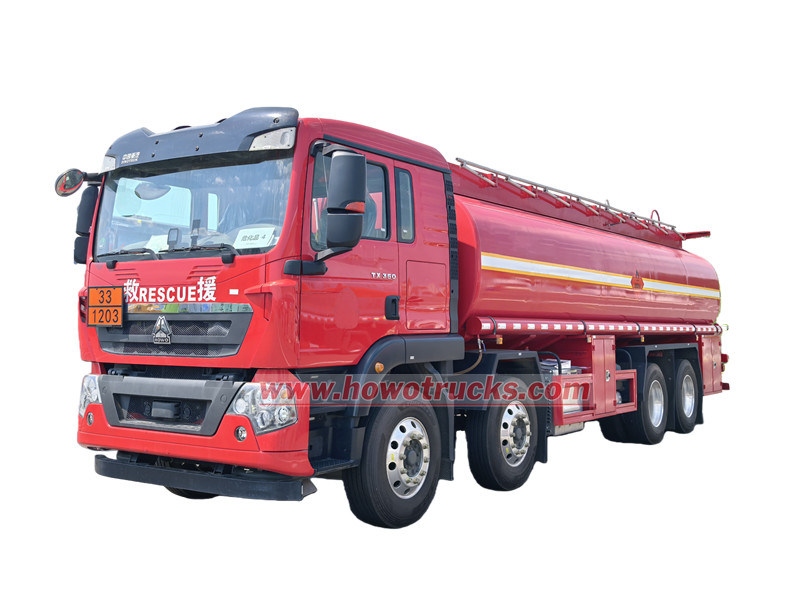

HOWO TX 30000L emergency fuel supply truck

HOWO TX 30000L emergency fuel supply truck

The HOWO TX 30000L emergency fuel supply truck, is equipped with high-performance WP inline 6-cylinder water-cooled turbo intercooler diesel engine, rated 400hp max output. Mated to 10-forward+2-reverse heavy-duty transmission plus reinforced diaphragm clutch, this heavy-duty powertrain delivers abundant torque reserve, sensitive shift response and strong off-road adaptability.

  • Capacità lavorativa :

    30000L
  • Tipo di cabina :

    HOWO TX single cabin, with one sleeper
  • Sistema di azionamento :

    8x4
  • Passo (mm) :

    1750+4600+1350
  • Specifico del motore :

    WP12S400E201
  • Cambio :

    HW19710C, 10 forwards & 2 reverses
  • Assale anteriore (kg) :

    7500*2
  • Assale posteriore (kg) :

    13000*2
Nuovi prodotti

The HOWO TX 30000L emergency fuel supply truck, is equipped with high-performance WP inline 6-cylinder water-cooled turbo intercooler diesel engine, rated 400hp max output. Mated to 10-forward+2-reverse heavy-duty transmission plus reinforced diaphragm clutch, this heavy-duty powertrain delivers abundant torque reserve, sensitive shift response and strong off-road adaptability.

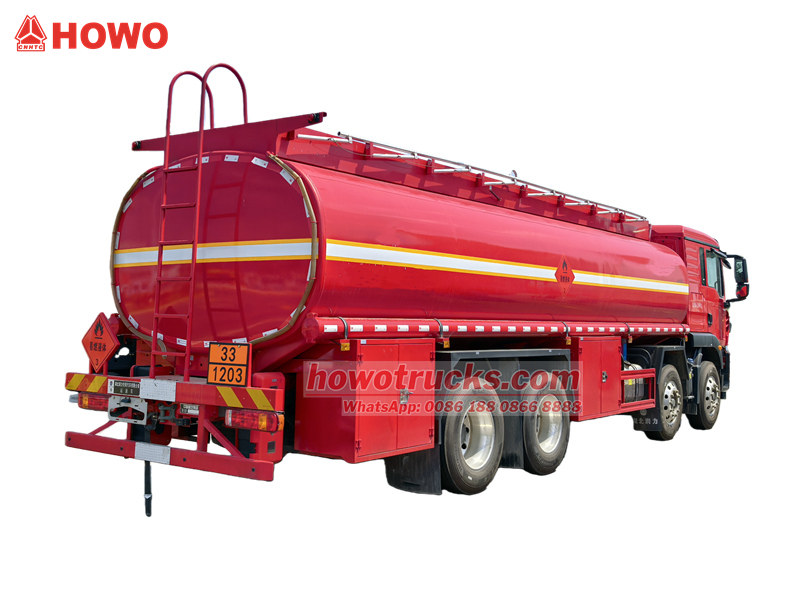

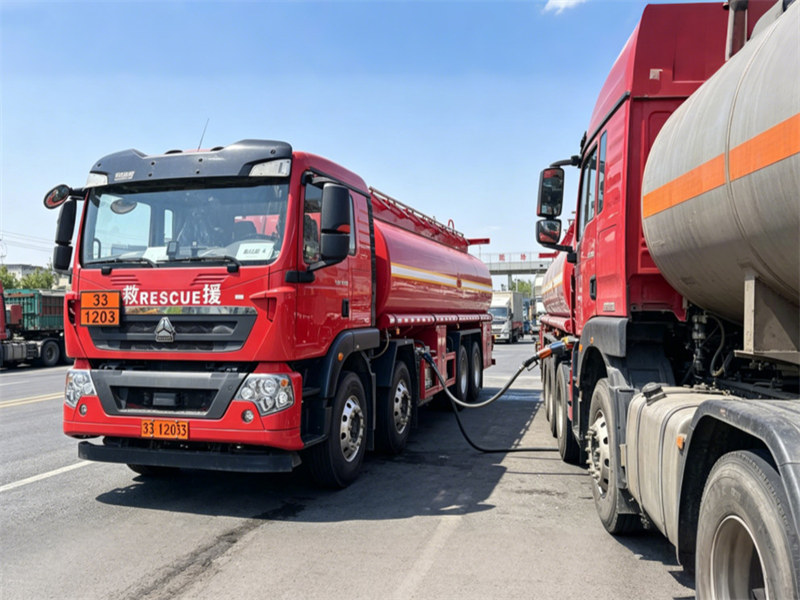

HOWO TX 30000L fuel tank truck

Built for emergency rescue missions, it maintains steady power output on bumpy rural roads, disaster zones and rugged construction sites, supporting uninterrupted emergency fuel supply for fire engines, engineering machinery and rescue fleets under harsh field conditions.

HOWO TX 30000L fuel tank truck



*HOWO TX 30000L Fuel Bowser Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in HOWO truck area,

guarantee all products Brand-New and High-Quality.



Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:

 Truck Chassis: Sinotruk HOWO truck chassis,8x4, 8x8 model, WP model with 300HP,340HP,380HP,400HP... Euro 2,3



 Tank material: 6mm thick high-quality steel for prolonged service lier, carbon steel, aluminum alloy or stainless steel can be choose.



 Professional Compartment:The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.

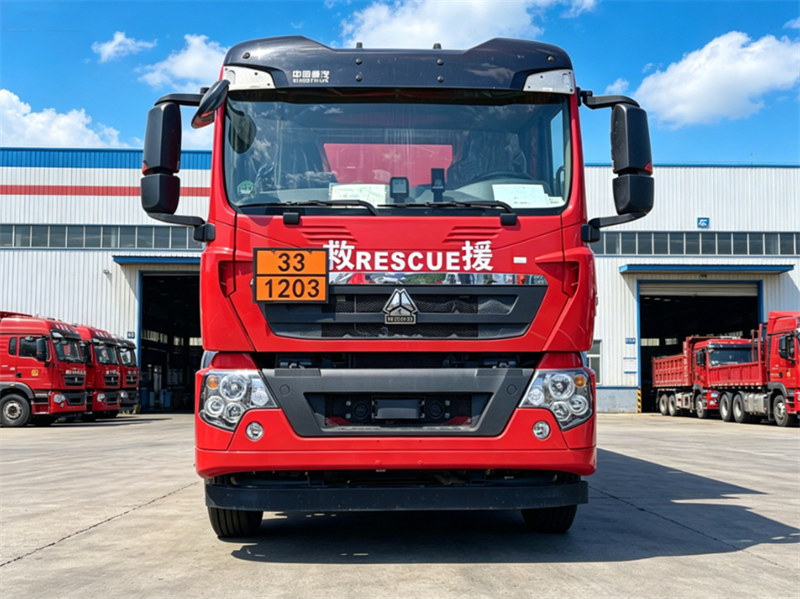

HOWO TX 30000L wildland fuel bowser truck



✦ Ⅱ.Product Parameter For HOWO TX Fuel Bowser Truck  « « «

HOWO TX 30000L wildland fuel bowser truck


HOWO TX 30000L Fuel Tank Truck

General

Vehicle Brand

CSC522507YJYC

Chassis Brand

HOWO

Overall Dimension

13800 * 2300 * 2650 mm

GVW / Kerb Weight

33,000kg / 16,800kg

Cab

Cab Capacity

2 people allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WP12S400E201

Power

400 HP

Displacement

12 L

Emission Standard

Euro 3

Chassis

Drive Type

8X4 (left/right hand drive)

Transmission

Manual 10 speed levers with 1 reverse

Wheelbase/No. of axle

1750+4600+1350 mm / 4

Tire Specification

12.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

30,000 Litres

Tanker Material

Carbon Steel (Q235)

Pump

Fuel pump equipped for overhead delivery

Suction head

7 m

Hose

High quality, wire strengthened hose, with cooper wire, anti-static

Refueling Machine

Equipped based on customer requirement

Control panel

English or Your language

All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers...

Optional

** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).

** It can be divided into many compartments.

** Imported American pump as optional.

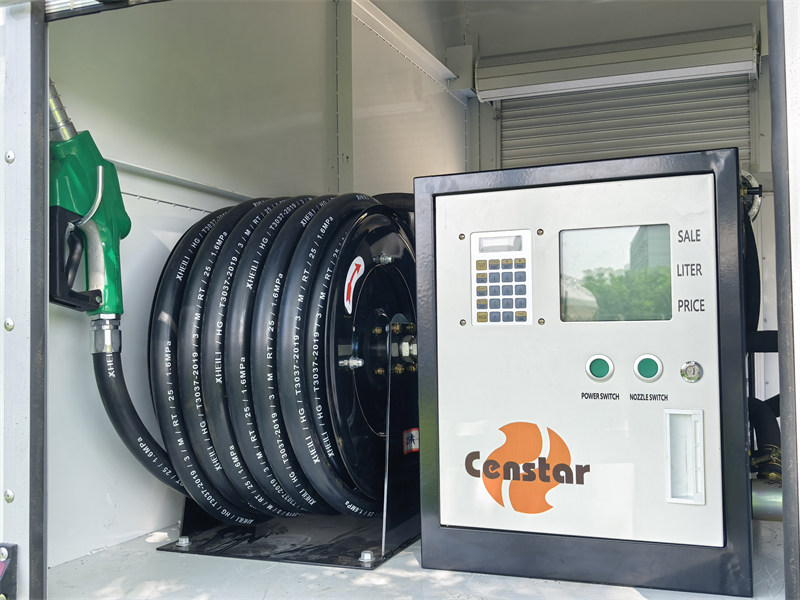

** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc

** Heat preservation & heating system could be added.

** Bottom loading system can be equipped.

HOWO TX 30000L fuel tank truck


✦ Ⅲ. Advantage For HOWO TX Fuel Delivery Truck « « «



HOWO TX 30000L fuel tank truck

1.Heavy Duty Robust Chassis Built for Diverse Global Road Conditions:

Reliable heavy duty 8x4 commercial truck chassis with powerful, low-emission engine options adaptable to different national emission standards.

Reinforced suspension and heavy-load wheel hubs deliver outstanding load-bearing performance, capable of handling rough rural, suburban and urban road networks across Africa, Southeast Asia and Latin America.

Mature brake system including ABS and dedicated retarder for stable, safe braking under full 30,000L loaded weight, meeting international hazardous goods transport safety codes.



HOWO TX 30000L fuel tank truck

2.Tank & Fuel Delivery System:

30,000 liters, engineered for mass emergency fuel transport to cut repeated supply trips during rescue operations

Tank shell made of Q345 high-strength carbon steel with ≥6mm thick walls, featuring excellent pressure resistance, anti-corrosion and impact resistance—critical for bumpy emergency transit

Full set of domestic top-tier fuel pumps, control valves, sealed pipelines and professional fuel dispensing assemblies integrated onboard

Stable, leak-free fuel transfer with high refueling efficiency. All pipeline safety components comply with international hazardous liquid transport standards.



✦ Ⅳ.Fuel Pump System for HOWO Fuel Tank Truck « « «

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

♦ The oil pump is connected to the chassis via a pump mounting bracket.



fuel pump fuel pump



♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.



fuel pump





Circular Arc Gear Oil Pump

Model

80YHCB-80

Pressure

0.7 MPa

Flow

80 m³/h

Power Supplied

11 KW

Rotational Speed

1170 r/min



    ✦ Ⅵ.HOWO Fuel Truck Safety Protection Devices « « «

     The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

     A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

     To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

     Fire extinguishers are provided on both sides of the oil tank.



    • HOWO TX 20000L fuel tank truck
    • HOWO TX 20000L fuel tank truck
    • HOWO TX 20000L fuel tank truck



    ✦ Ⅴ.HOWO Fuel Bowser Truck Pipeline Operation System « « «

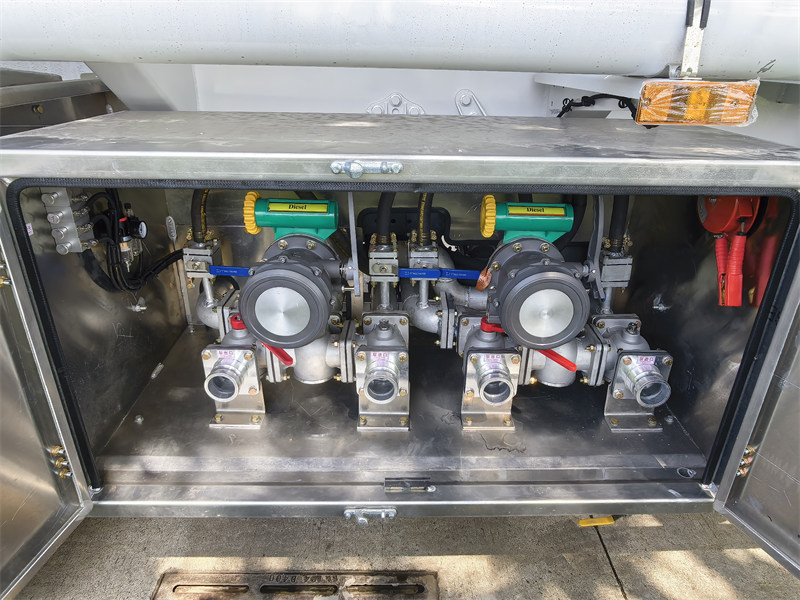

    The control box is mounted at the tank lower section, integrating three-way ball valve, flow meter, dual filters, CRJ quick couplings, pressure and vacuum gauges.Dedicated gauges monitor pump inlet vacuum and outlet pressure in real time, keeping the oil delivery system operating stably.

    HOWO TX 20000L fuel tank truck



     Pump out:

    (1) Turn the four-position three-way ball valve mark point to the direction of forward B);

    Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other

    (2) Open two-way Ball Valve 1to pump oil;

    (3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be achieved refueling refueling machine.

    ♦ Pump in:

    (1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;

    (2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.

    (3) Other functions:The user can adjust and realize various functions according to the oll circult principle.



    • HOWO TX 20000L fuel tank truck
    • HOWO TX 20000L fuel tank truck
    • HOWO TX 20000L fuel tank truck



    ✦ Ⅵ.HOWO Fuel Bowser Truck Pipeline Application « « «

    1. Mobile Fuel Supply at Fire and Rescue Sites: In situations such as fires, forest fires, or large-scale hazardous chemical accidents where fixed gas stations are inaccessible, this vehicle can provide immediate diesel/gasoline refueling to fire trucks, firefighting machinery, and large smoke extraction equipment when they run out of fuel.



    2. Fuel Supply for Natural Disaster Relief: After disasters such as floods, earthquakes, and landslides, when roads are damaged and gas stations are shut down due to power outages, this vehicle can supply fuel to rescue excavators, disaster relief transport vehicles, emergency power generation equipment, and disaster relief command vehicles.

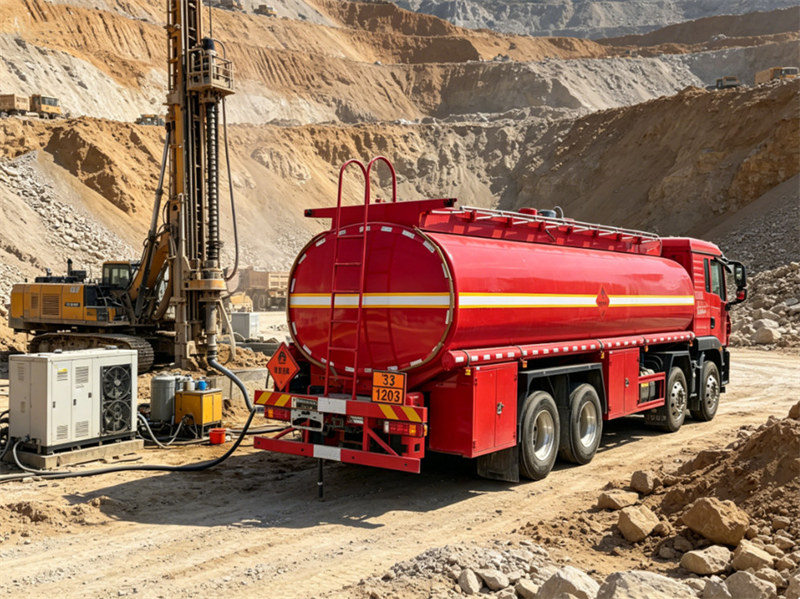

    3. Emergency Energy Supply for Large-Scale Field Projects/Mining Areas: Located in remote open-pit mines, field construction sites, and remote wind and solar power plants, far from urban fuel supply outlets, this vehicle serves as a regular emergency reserve fuel supply vehicle to refuel heavy trucks, drilling rigs, and generator sets; it can also address sudden fuel shortages and work stoppages at construction sites.



    HOWO TX 30000L fuel tank truck



    HOWO TX 30000L fuel tank truck




    ⇒ Products--100% Customized Level One!
    ⇒ Transportation--100% Safety, Convenience, Efficient!
    ⇒ Services--7days + 24hours Safetify Service!


    »»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



    China professional HOWO fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



    ♦ Maximize save your sea freight.

    ♦ Professional guidance on your importing documents.

    ♦ Safety, Quickly, Timely



    HOWO TX 30000L fuel tank truck



    HOWO TX 30000L fuel tank truck
