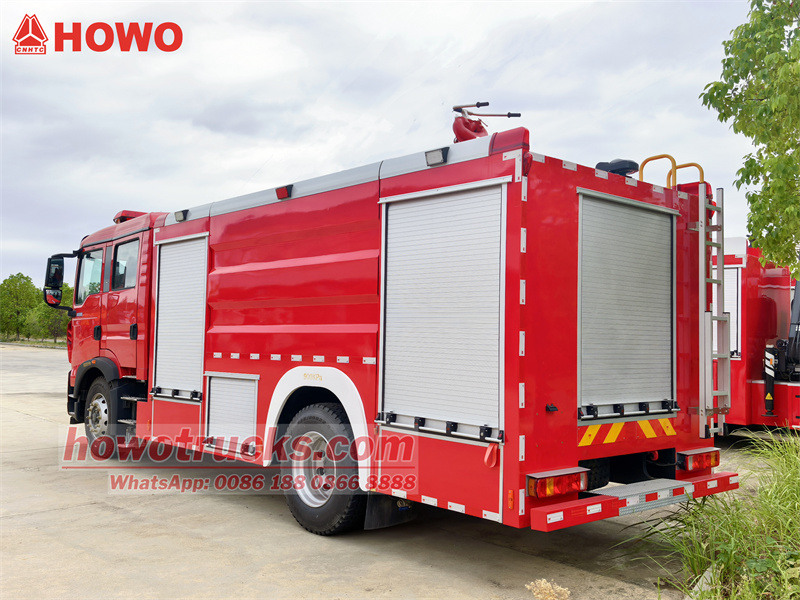

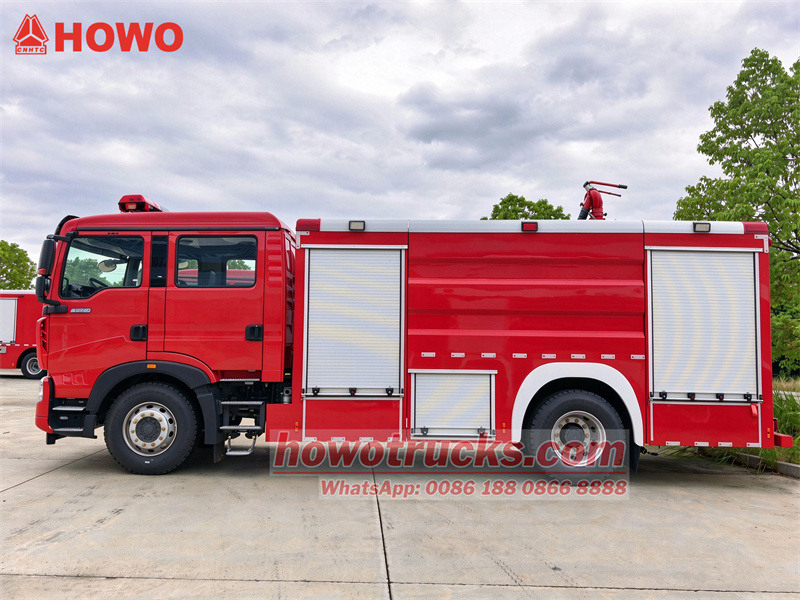

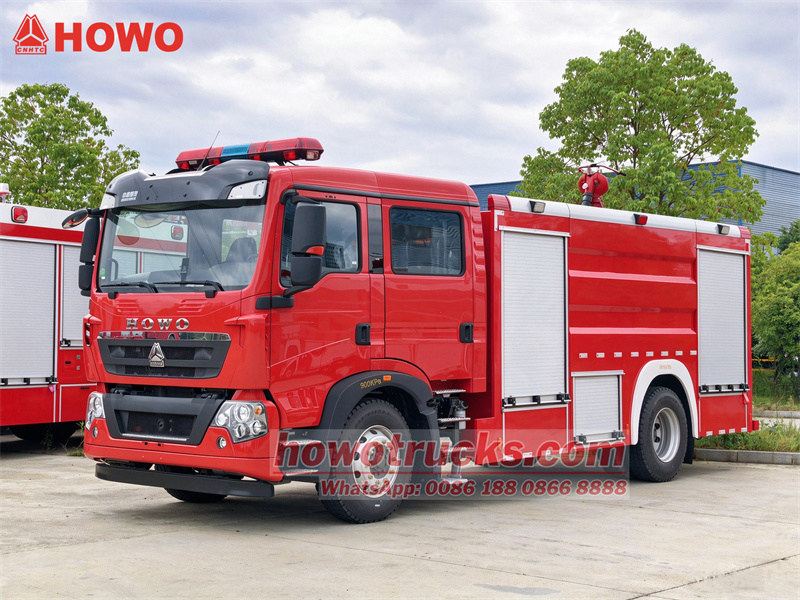

HOWO TX 300HP fire protection truck

HOWO TX 300HP fire protection truck

The Howo TX300 water-tank fire truck is a highly efficient, primary-response vehicle that integrates transport, firefighting, and rescue capabilities. Its superstructure features a streamlined and practical design: the forward equipment compartment houses a variety of firefighting gear; the central section contains a 6cbm carbon-steel water tank, providing an ample supply of extinguishing agent; and the rear pump compartment is equipped with a CB10/60-RS fire pump and an intelligent monitoring system. The combination of the 6m³ water tank and the CB10/60-RS pump enables a high-pressure water flow of 60L/s. Through the PS8/40W fire monitor or fire hoses, water can be delivered with precision over long distances.

  • Capacità lavorativa :

    6000L
  • Tipo di cabina :

    HOWO TX-F
  • Dimensione (mm) :

    8680*2505*3700
  • Sistema di azionamento :

    4X2
  • Passo (mm) :

    4600
  • Specifico del motore :

    WP10.300E22/300HP
  • Cambio :

    HW19709XST,9-speed
  • Assale anteriore (kg) :

    6500
  • Assale posteriore (kg) :

    11500
Nuovi prodotti

The HOWO TX 300HP Water Fire protection truck is equipped with a WP10.300E22 engine and an HW19709XST transmission. The superstructure features an equipment compartment at the front for auxiliary firefighting gear, a 6-cubic-meter steel water tank in the middle, and a pump room at the rear. The pump room houses a CB10/60-RS fire pump with a flow rate of 60 L/s, along with a control panel and additional firefighting equipment. A PS8/40W water monitor is mounted on top of the tank. This vehicle is widely used for rapid response and efficient fire suppression in urban high-rise buildings, industrial facilities, and forest environments.

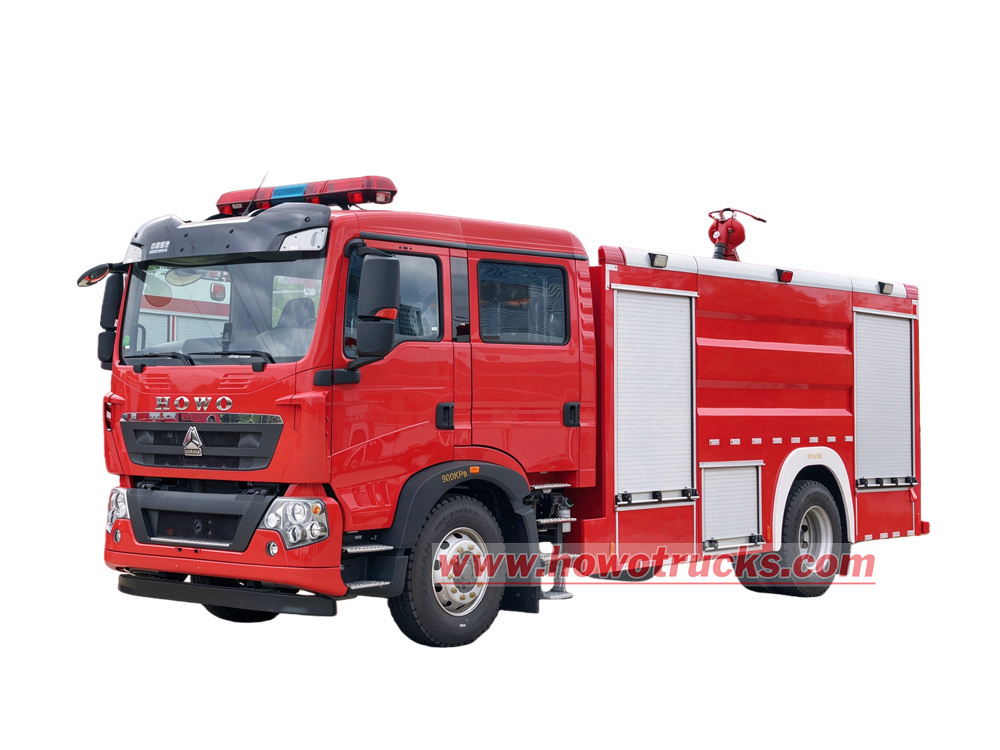

HOWO TX 300HP Water Fire protection truck

HOWO TX 4x2 double row water fire truck



Working Capacity

 Engine Model

 Wheelbase

 Superstructure

6000L water

WP10.300E22/ 300HP

 4600 mm

★Water tank carbon steel

★China famous CB10/60-RS fire pump

★ China famous PS8/40W Fire monitor

★ 2026 year brand new





▶ Performance Advantages:

1. Rapid Power Response: Equipped with a 300HP engine and a 9-speed transmission, ensuring the vehicle is ready for immediate emergency deployment.



2. High Liquid Capacity: A 6-cubic-meter water tank supports extended, continuous operations, minimizing the need for frequent refilling.



3. Integrated Pump and Monitor System: The CB10/60 fire pump works in tandem with the PS8/40W fire monitor to deliver high-pressure, long-range streams—ideal for incidents such as high-rise building fires or chemical-related blazes.



4. Highly Integrated Equipment: Features organized storage compartments for gear and a centralized control panel in the pump room, significantly reducing preparation time for firefighting operations.



▶ Product Parameters:

HOWO TX 6000L foam water fire truck

General

Work capacity

6000L water tank

Truck chassis

HOWO TX300,double row

Engine Power

300HP/WP10.300E22

Fire pump

CB10/60-RS

Chassis

Drive Type

4X2

Transmission

HW19709XST 9-speed, manual

Wheelbase

 4600mm

Tire

315/80R22.5 ,6+1 wheel





Fire pump

Model

CB10/60-RS

Rated Pressure

1.082 MPa

Max allowable inlet pressure

0.4MPa

Flux

60 L/s

Speed ​​ratio

1:1.542

Max suction height

7m

Rated speed

3200±50r/min

Foam Water Proportioning Mixer

Model

PH64-RS

Mixing ratio

6%

Work pressure range

0.6~1.4MPa

Flow range

16~64L/s

Suitable foaming liquid categories

Category B

Fire monitor

Model

PS8/40W

Flow

32L/s

Rated working pressure

0.8MPa

Max working pressure

1.0MPa

Water Range

≥65 m

Pitch rotation

- 30~+70°

Horizontal rotation

0~360°

Suction tube

125*2m,4pic

 Standard  configuration

All standard accessories: Fire hose, filter, coupling, wrench, water gun, basic tool kit, English manual……

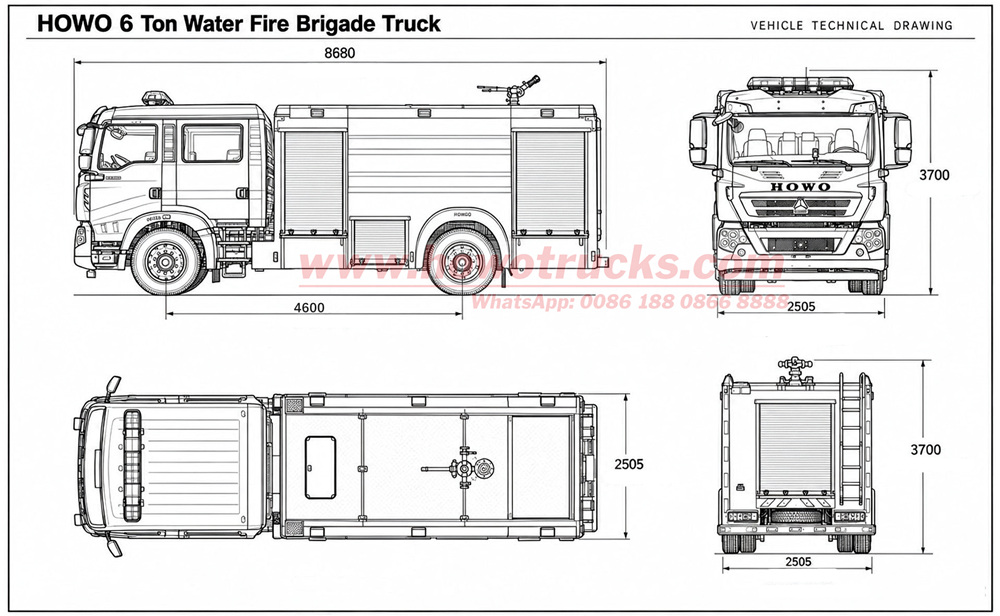

HOWO TX 6cbm water tank fire engine technical drawing

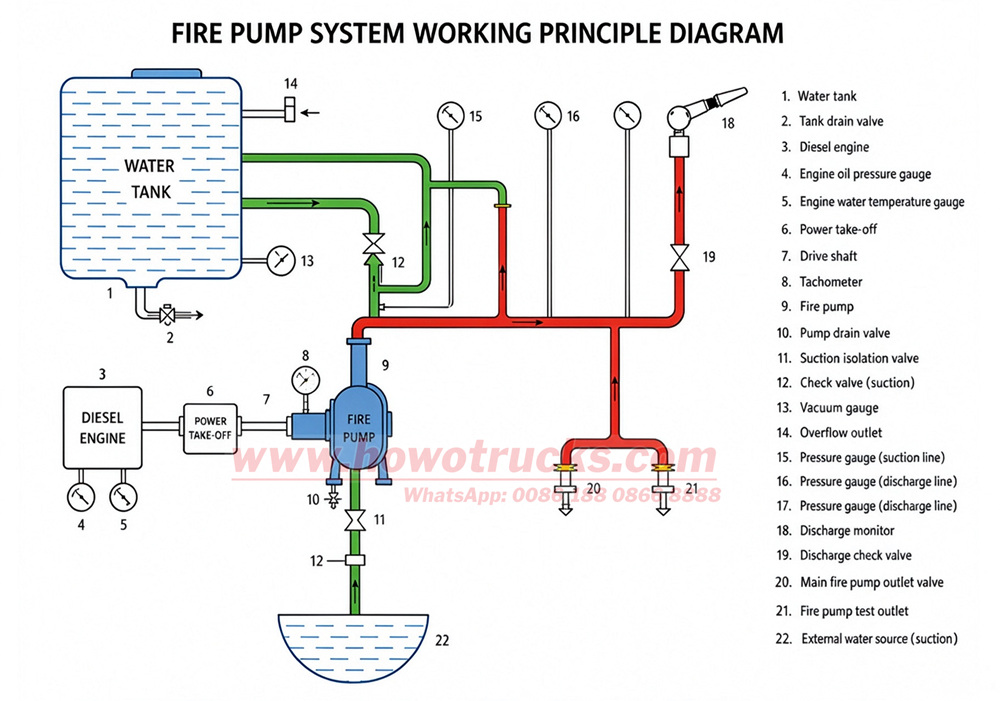

▶ Fire-Extinguishing Principles:

The core fire-extinguishing mechanism of this Howo 4x2 water-tank fire truck centers on "water supply and high-pressure discharge." The vehicle is equipped with a large-capacity 6-cubic-meter water tank that serves as a reservoir for the extinguishing agent. During firefighting operations, a CB10/60 fire pump—driven by the chassis engine via a PTO driveshaft—draws water from the tank and pressurizes it. The pressurized water is then discharged at a flow rate of 60 L/s through fire hoses or a PS8/40W fire monitor. In "straight-stream" mode, the water is concentrated on the base of the fire to rapidly lower the temperature below the ignition point; in "spray" (fog/cone) mode, the coverage area of the water mist is expanded, utilizing heat absorption through evaporation and a smothering effect to cut off the oxygen supply. A control panel in the pump compartment allows for the monitoring of various parameters, enabling timely adjustments during operation.

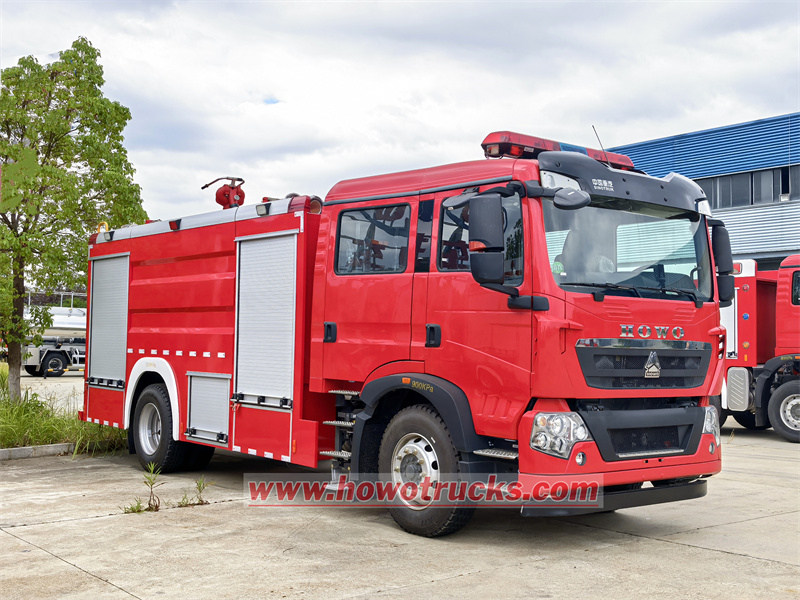

HOWO TX 6000L foam water fire truck



▶ Chassis System:

• Chassis Model: Howo TX 4x2, double-row cab, 4600mm wheelbase

• Engine: WP10.300E22, 300 hp, high-pressure common-rail, turbocharged, intercooled diesel engine; 9.726L displacement; features high power output and low fuel consumption.

• Transmission: HW19709XST transmission, with a maximum input torque of 1900 N·m; offers precise gear shifting and a wide gear ratio range, suitable for various driving conditions.

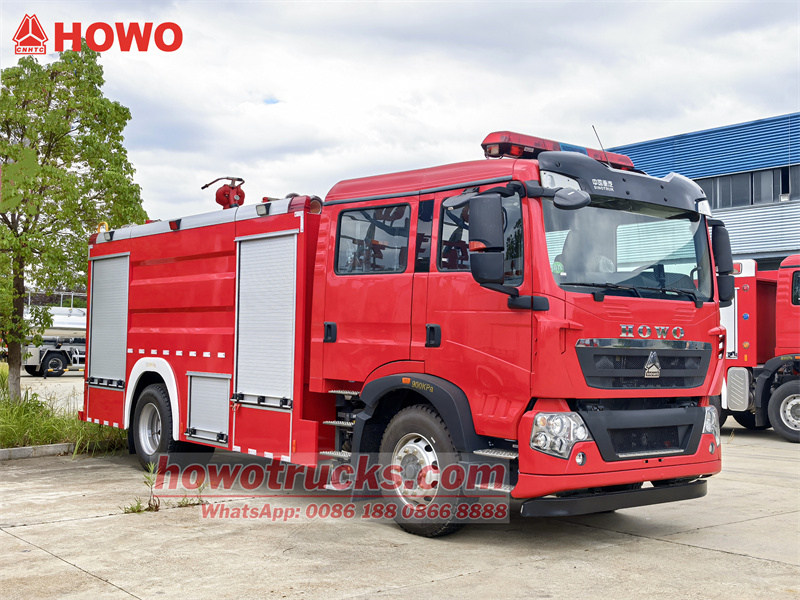

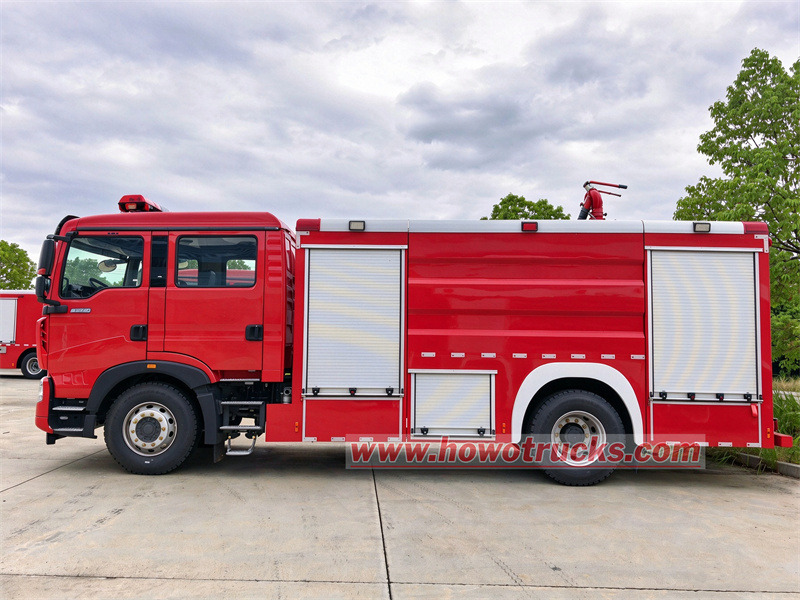

HOWO TX 4x2 double row water fire truck



▶ Superstructure:

1. Equipment Compartment (Front)

o Function: Centralized storage for auxiliary firefighting equipment, designed for quick and easy access.



2. Tank (Middle)

o Material and Capacity: 6m³ carbon steel water tank, treated with an anti-corrosion coating.

o Internal Baffles: Designed to minimize liquid sloshing.

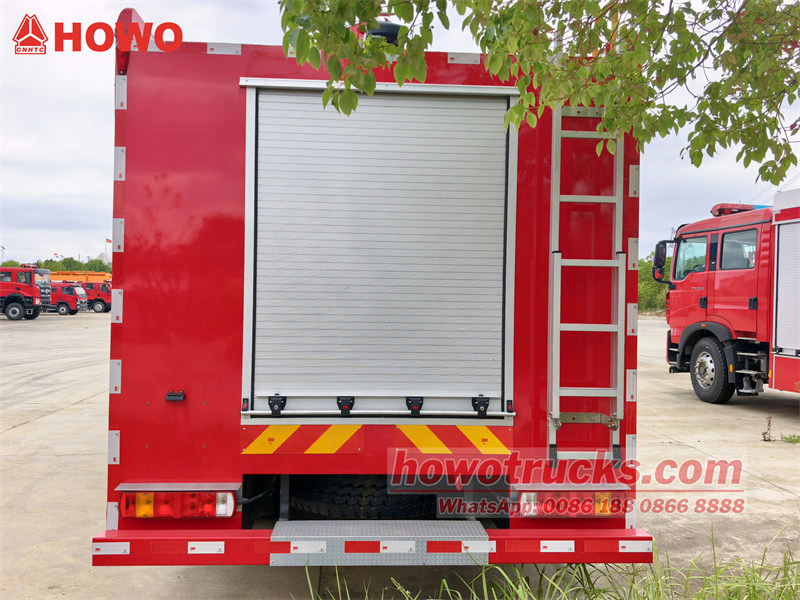

3. Pump Room (Rear)

o Core Equipment: CB10/60-RS fire pump.

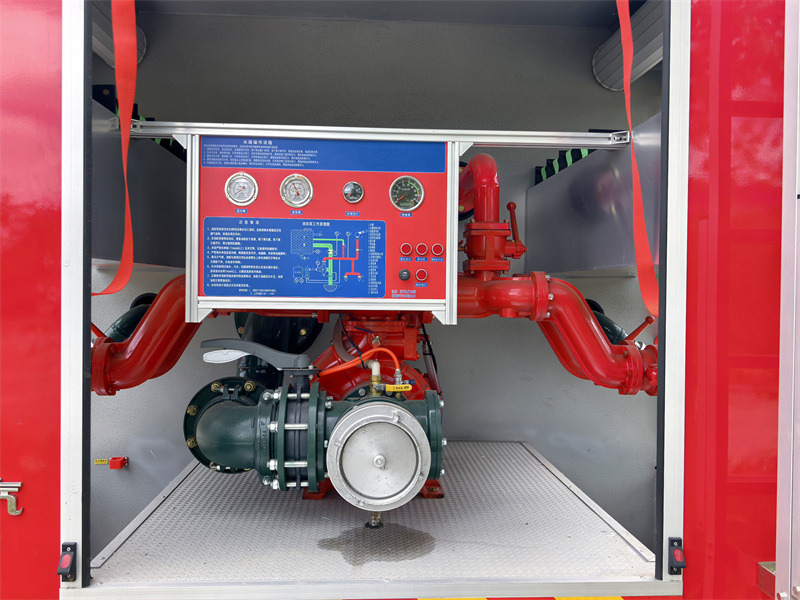

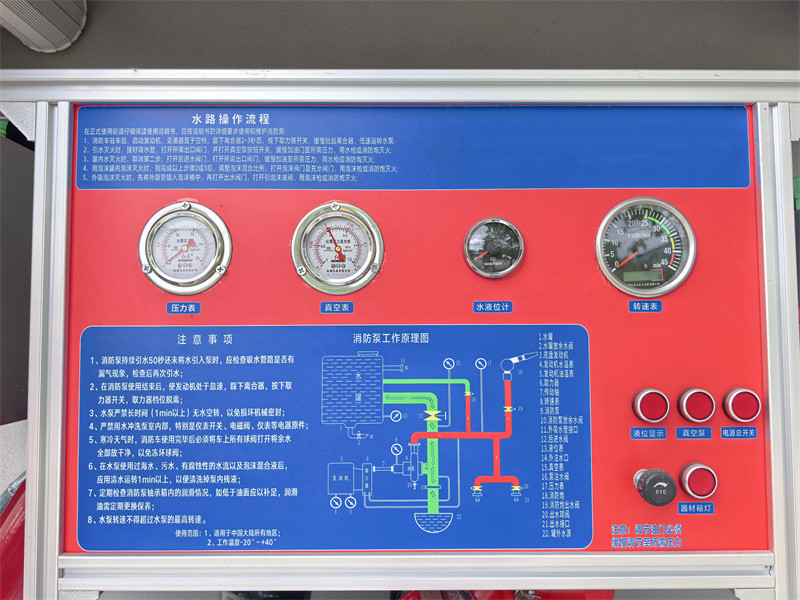

o Control Panel: Includes operating instructions, piping schematics, a pump tachometer, pressure gauges (for atmospheric and vacuum pressure), a water level indicator, lighting, an emergency stop switch, a main power switch, and other controls.

o Ancillary Equipment: Water collectors/dividers, strainers, fire hoses, etc.

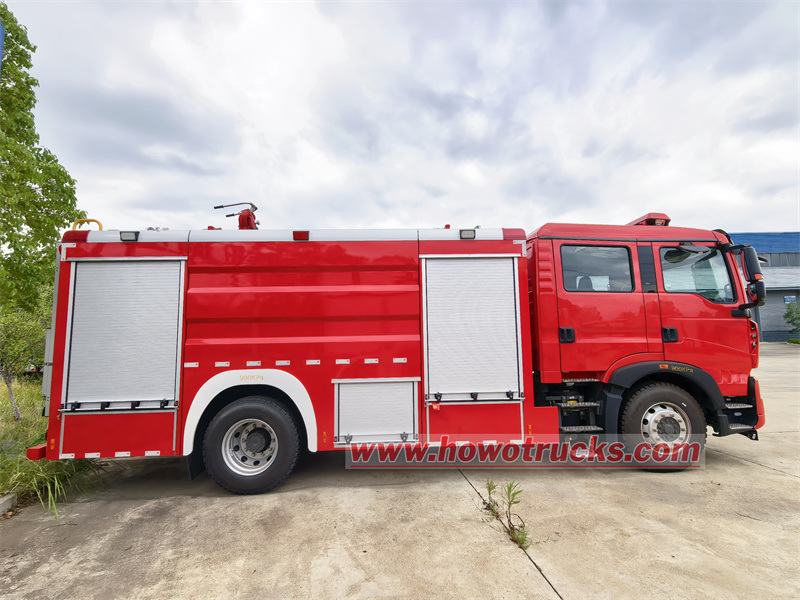

HOWO 4x2 6000 liters water fire rescue truck



▶ Fire pump and monitor:

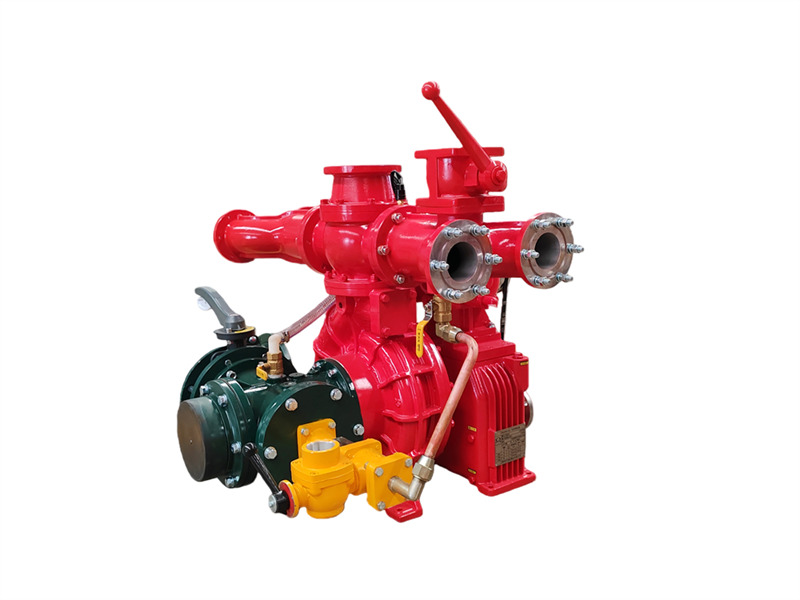

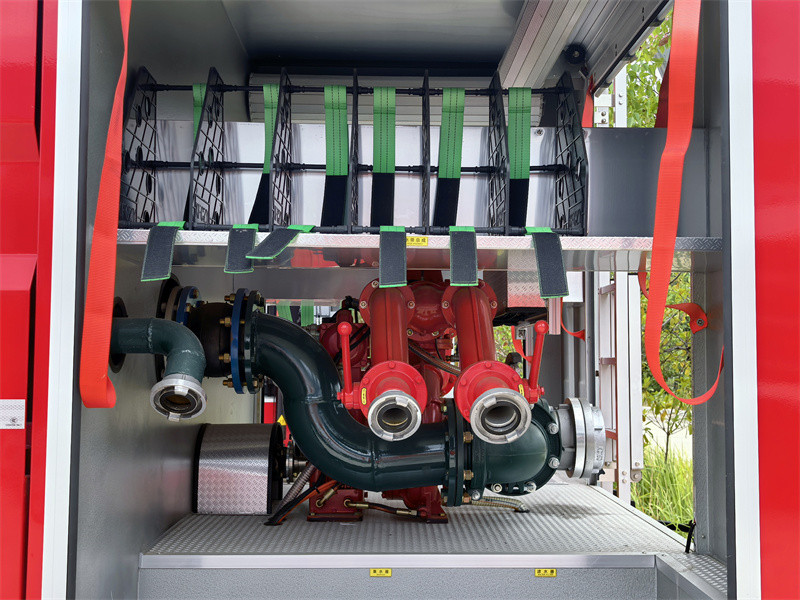

CB10/60-RS fire pump:

CB10 60-RS fire pump





CB10/60-RS

Work condition

Flow(L/s)

Pressure(MPa)

Speed(rpm)

Power(Kw)

Suction depth(m)

1

60

1.0

3200±50

99.71

3

2

42

1.3

3528±50

109.18

3

30

1.0

3326±50



7

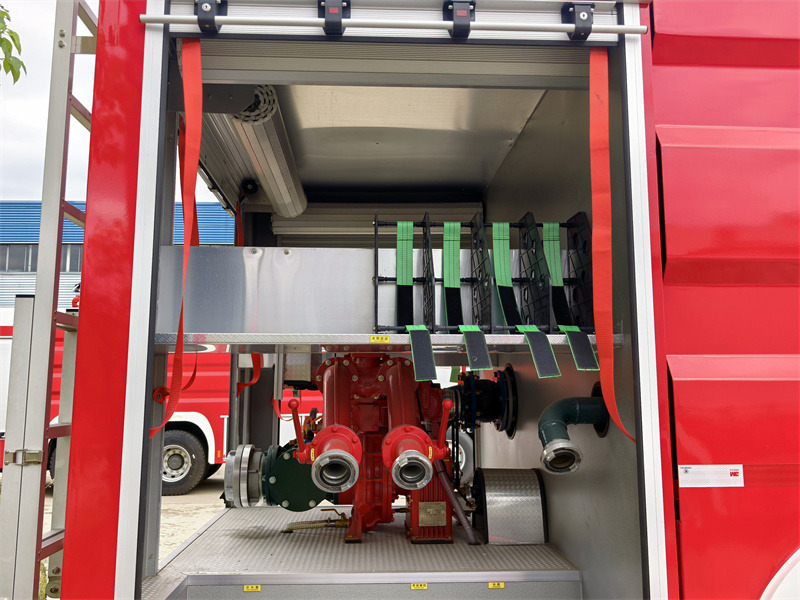

  • CB10/60-RS fire pump:
  • CB10/60-RS fire pump:
  • CB10/60-RS fire pump:

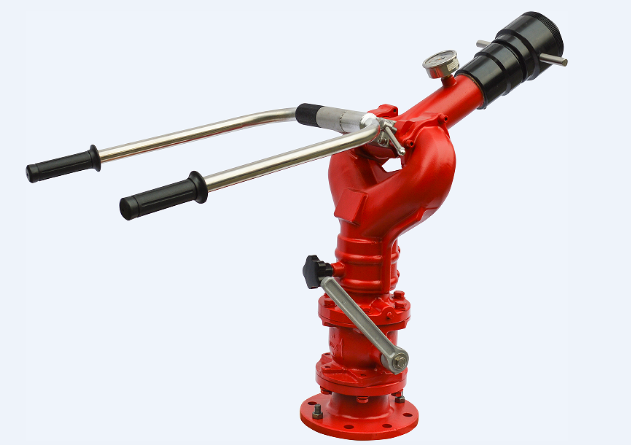

PS8/40W water fire monitor:

PS8/40W water fire monitor



Fire Monitor Model

Flow

Range

Rated Pressure

Pitch Rotation

Horizontal rotation

Weight

PS8/30W

30L/s

Water ≥60m

0.80MPa

-30°~+70°

0~360°

22kg



▶ Piping System:

Tank pipeline material: Seamless steel pipes, connected to all components via flanges.



Tank outlet pipeline: Equipped with one DN125 tank outlet pipeline for water delivery from the tank to the fire pump. Fitted with one DN125 manual butterfly valve; the water tank and fire pump are connected through a DN125 flexible joint.



External suction pipeline: One DN125 external suction inlet is arranged at the rear of the fire pump for connecting a 125mm suction hose with a camlock coupling.



Tank filling pipeline: One DN65 filling port is provided on each of the left and right sides of the tank.



Discharge pipeline: The fire pump is equipped with one DN80 and one DN65 atmospheric discharge outlet on each side (left & right).



Drain pipeline: A drain valve is installed at the lowest point of the piping circuit to protect the fire pump and ball valves.



Cooling water pipeline: A cooling water circuit with ball valve is fitted to ensure the power take-off (PTO) operates reliably under complex working conditions.

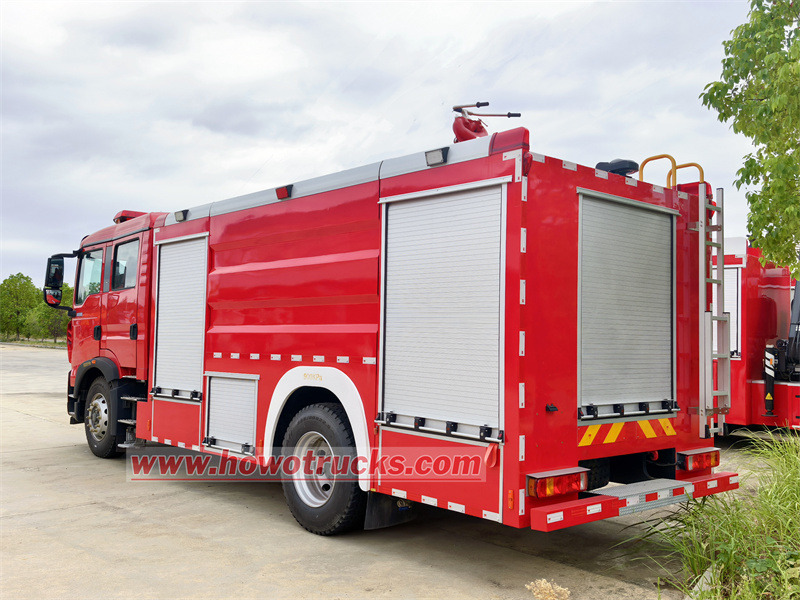

Howo TX300 water-tank fire truck6 Ton Water Fire Brigade Truck HOWO
