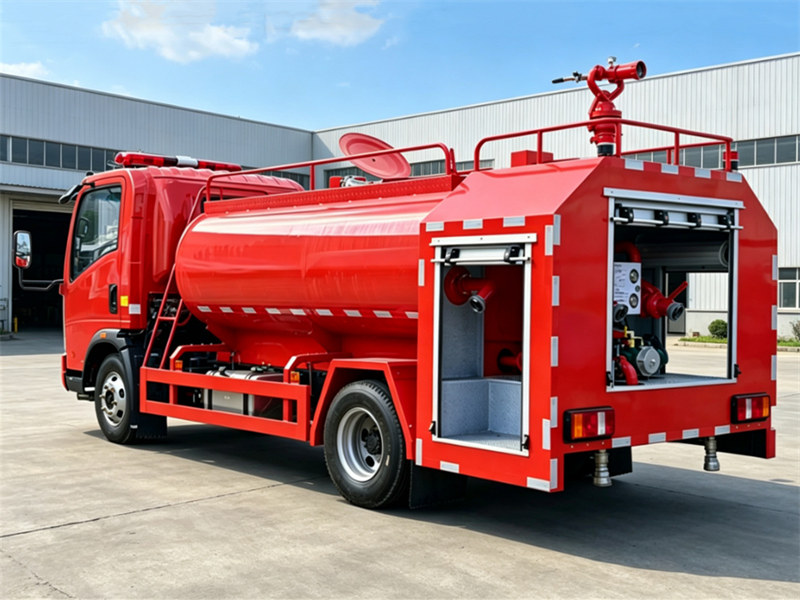

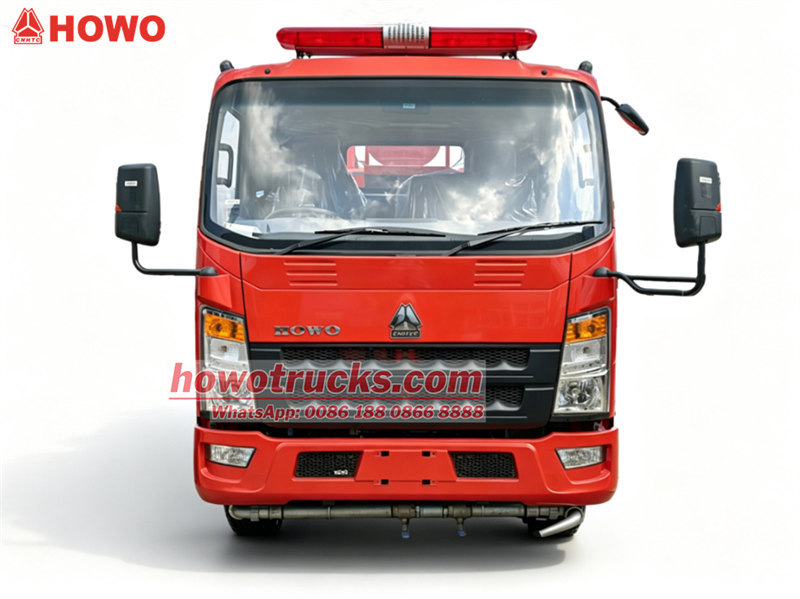

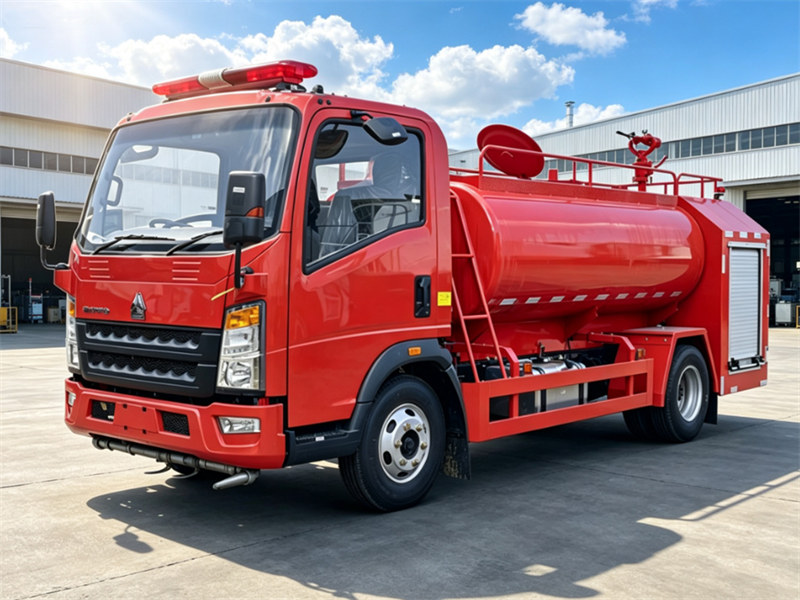

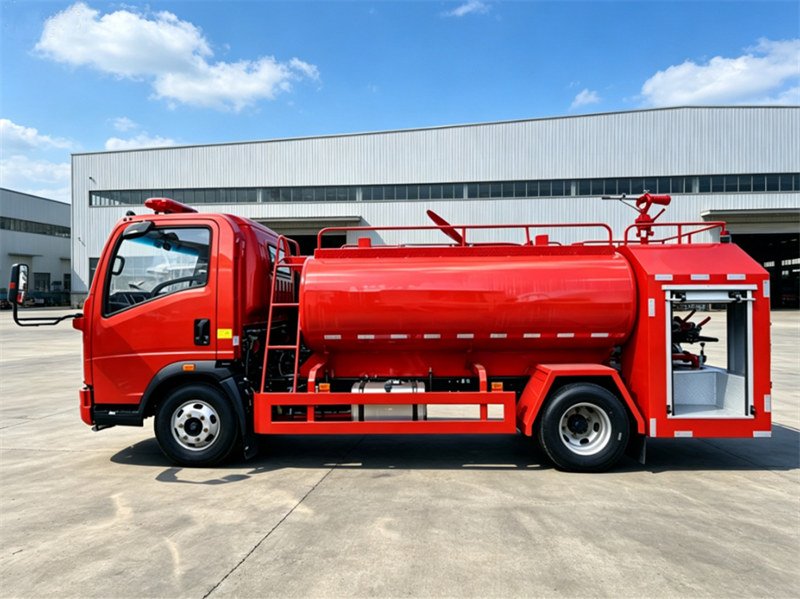

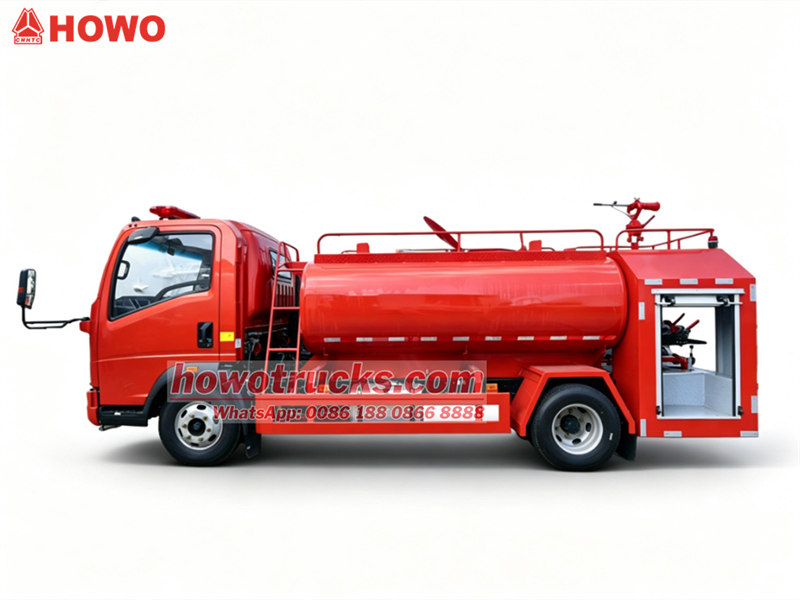

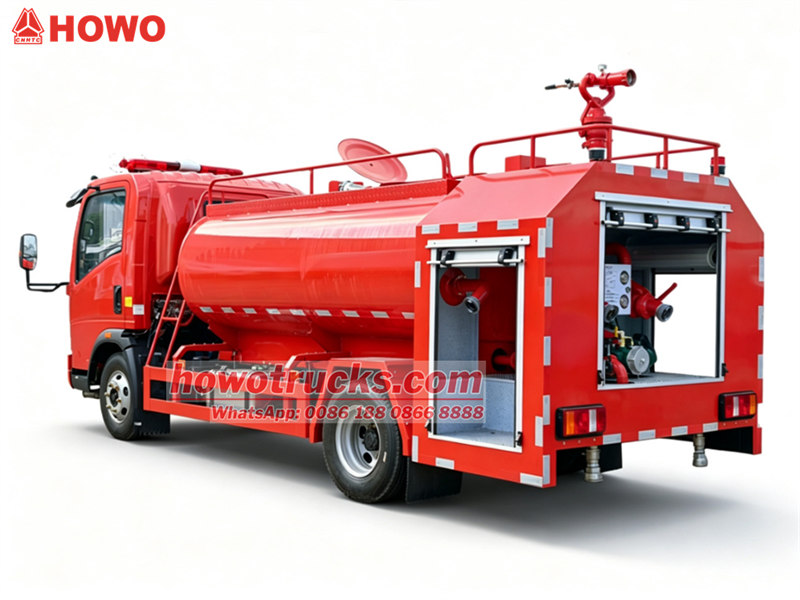

HOWO rescue fire water tank truck

HOWO rescue fire water tank truck

The HOWO Light Fire Truck is a highly agile, fully functional emergency rescue vehicle engineered for urban fire response. Powered by a 140HP Yuchai engine, paired with a 4x2 light duty drive system and 6-speed transmission, it delivers outstanding flexibility to traverse narrow, congested urban roads and respond rapidly to small-scale fire incidents.It features a 4000L water tank to cover diverse firefighting scenarios. Fitted with a premium Chinese-brand fire pump, it achieves a working pressure of 1.3–2.5 MPa and a maximum flow rate of 20 L/s, capable of tackling most common fire types efficiently. The 360° rotatable fire monitor boasts a 55m shooting range, greatly boosting on-site firefighting effectiveness.



  • Capacità lavorativa :

    4000L
  • Tipo di cabina :

    HOWO light single cabin (3)
  • Sistema di azionamento :

    4x2
  • Passo (mm) :

    3800
  • Specifico del motore :

    140 HP / YC4E140-32
  • Cambio :

    WLY, 6 forwards & 1 reverses
  • Assale anteriore (kg) :

    2800
  • Assale posteriore (kg) :

    5500
Nuovi prodotti

The HOWO Light Fire Water Tank Truck is a highly agile, fully functional emergency rescue vehicle engineered for urban fire response. Powered by a 140HP Yuchai engine, paired with a 4x2 light duty drive system and 6-speed transmission, it delivers outstanding flexibility to traverse narrow, congested urban roads and respond rapidly to small-scale fire incidents.

It features a 4000L water tank to cover diverse firefighting scenarios. Fitted with a premium Chinese-brand fire pump, it achieves a working pressure of 1.3–2.5 MPa and a maximum flow rate of 20 L/s, capable of tackling most common fire types efficiently. And equiped with the protection water spraying system. The 360° rotatable fire monitor boasts a 55m shooting range, greatly boosting on-site firefighting effectiveness.

Built with a high-strength steel chassis and aluminum alloy superstructure, this 140HP HOWO fire truck balances lightweight design with long-lasting durability. Full LED warning and lighting systems guarantee safe nighttime driving and operation.

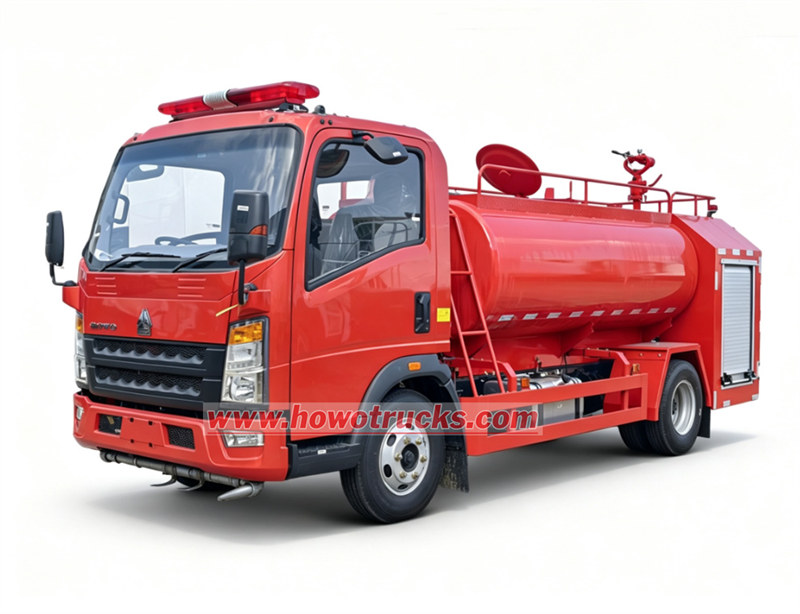

HOWO fire fighting truck



*HOWO Light 4x2 Fire Water Truck

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in Howo truck area,

guarantee all products Brand-New and High-Quality.



Ⅰ.Product Defination and Introduction «««



Manufacturer: CS Trucks Group

Features:

✅ Compact HOWO light chassis, outstanding urban passability



✅ 140HP Euro 6 Yuchai power, rapid emergency response



✅ Lightweight aluminum upper body, long service life



✅ Hight load 4000L water tank design



✅ High-flow auto-priming fire pump + 55m 360° rotating fire monitor



✅ Full LED warning & working lighting system



✅ Complete rescue tools included, ladders & floodlights optional



HOWO light fire fighting truck



Ⅱ.Product Parameter For HOWO Fire Foam Truck «««

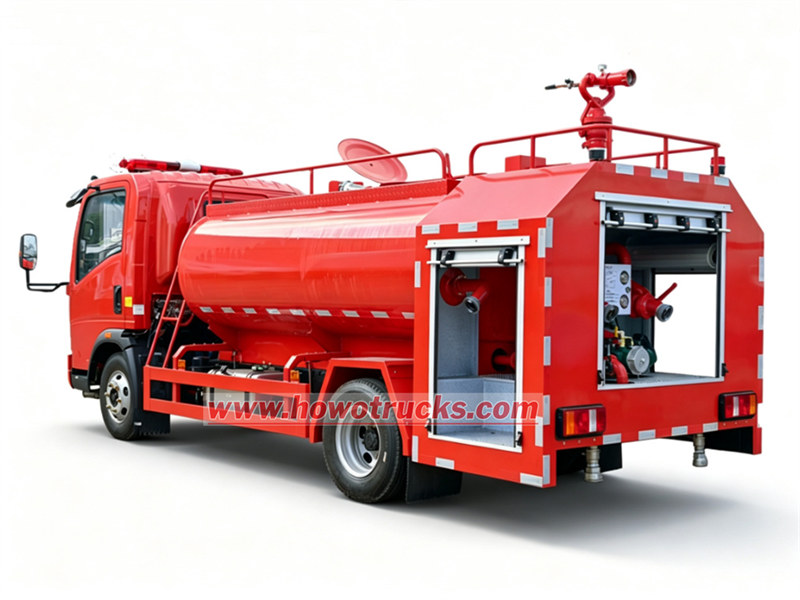

HOWO fire water tank truck

Best Choice,HOWO Fire Trucks

⇓ ⇓ ⇓



HOWO Light Duty Fire Truck

General

Vehicle Brand

CS Trucks Group

Chassis Brand

HOWO

Overall Dimension

6300*2450*2550mm

GWW/ Kerb Weight

9,300kg/4,080kg

Painting

Red

Cab

Cab Capacity

3 persons allowed

Air Conditioner

 air conditioner

Engine

Fuel Type

Diesel

Engine Model

YC4E140-32

Engine type

Inline 4-cylinder, turbocharged, inter-cooled diesel engine

Power

140HP

Displacement

3.86L

Emission Standard

Euro 3

Chassis

Drive Type

4X2,left hand drive

Transmission

Manual 6-speed forward, 1 reverse

Wheelbase/No.of axle

3800 mm / 2

Tyre Specification

8.25R20

Tyre Number

6 tyres and 1 spare tyre

Max Speed

95km/h

Fuel tank capacity

100L

PTO

Full power sandwich type























Superstructure

Liquid Tank

Capacity

Water 4000L

Tank Material

Carbon steel (optional stainless steel)

Standardized Sub-frame

Material

High-strength rectangular tube made of special steel

Structure

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear

Fire Pump

Brand

China TOP brand

Drive mode

 PTO

Priming Manner

Automatic

Pressure range

1.3-2.5 MPa

Flow rate

20 L/s

Suction Height

7m

Fire Cannon

Horizontal rotation angle

360 º

Range

45 m

Superstructure Electric Appliance

Warning Light and Siren

Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light

Mounted on the both sides of the compartment

External Lighting

LED lights are mounted on the both sides of the compartment

Roof Lighting

LED lights are mounted on the inside of the roof

Side Indicator Light

Inline yellow warning light is mounted on the side of the compartment and pedals

All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...

Optional

Ladders,floodlight

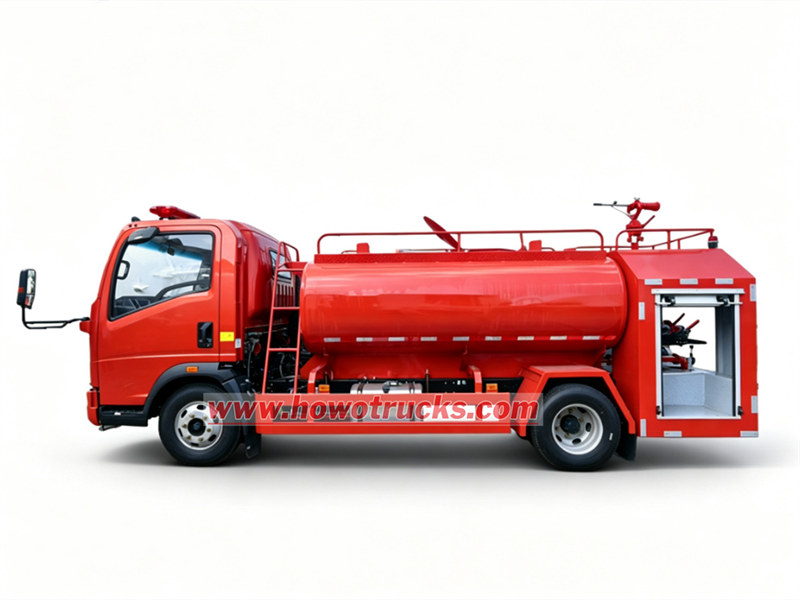

HOWO fire water tank truck



Ⅲ.Advantage Of HOWO Fire Water Truck «««



HOWO light fire truck

1. Agile & Reliable HOWO Light Chassis

Original HOWO 4×2 LHD chassis with compact 6300×2450×2550mm overall size, easily navigating narrow streets and tight job sites

140HP Yuchai Euro 6 diesel engine + 6-speed manual transmission, max speed 95km/h for fast emergency dispatch

3 person cab, seats 3 firefighters for full team operation; cab-mounted control panel for warning lights & siren

Light curb weight (4,080kg) with 9,500kg GVW, stable load capacity; 8.25R20 tires + full power sandwich PTO for steady pump power output



HOWO light fire truck

2. High-Performance Fire Suppression System

 Top-brand automatic priming fire pump driven by chassis PTO, 7m suction height, 1.32.5 MPa pressure, 40 L/s steady flow.

 360° full rotation roof fire monitor with 45m maximum jet range, zero blind angle for efficient fire knockdown without repositioning the truck.

Equipped with a self-protecting sprinkler system



Ⅳ.Protection System Of HOWO Fire Water Truck «««

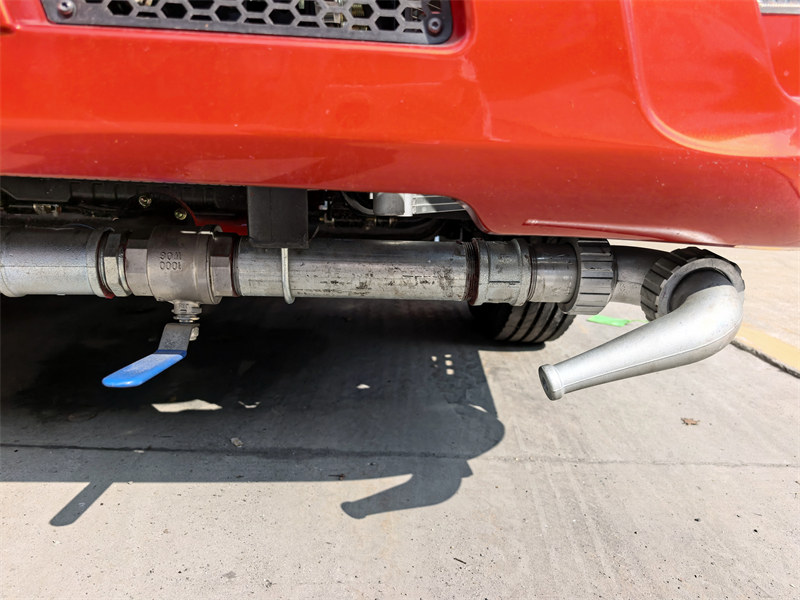

This HOWO water‑tender fire truck is fitted with an integrated self‑protection sprinkler system. When operating under intense heat and flame radiation, the onboard sprinkler setup sprays cooling water over the truck body, chassis and pump compartment. It shields critical piping, valves and hydraulic assemblies from high‑temperature damage, prevents overheating of core firefighting components, and allows the vehicle to stay safely close to fire scenes for sustained fire‑suppression work. This built‑in protection greatly improves crew safety and extends usable service life even in harsh high‑heat emergency conditions.



  • HOWO Fire water Truck
  • HOWO Fire water Truck
  • HOWO Fire water Truck

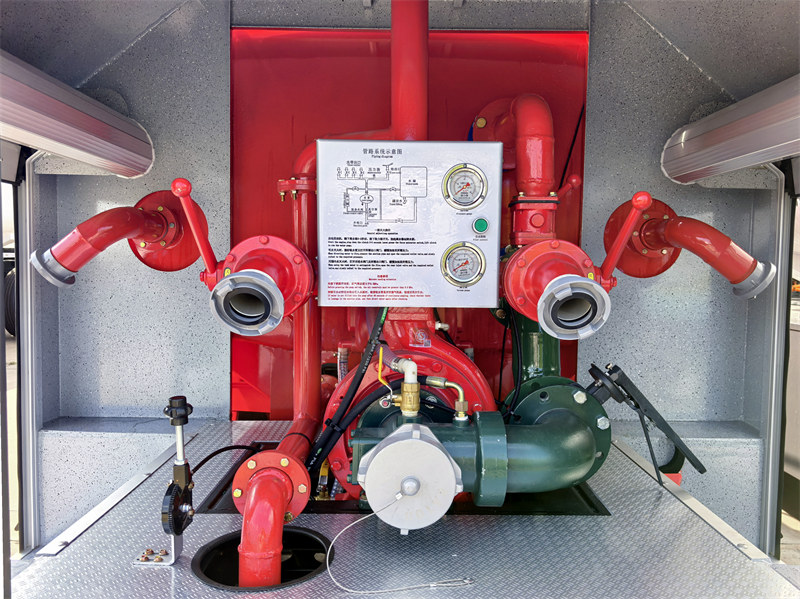

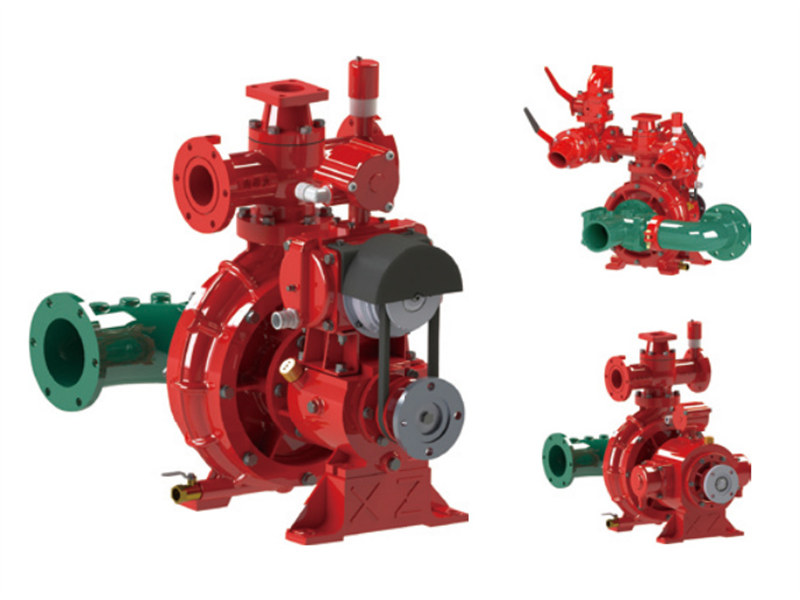

Ⅴ.Fire Pump System Of HOWO Fire Water Truck «««



HOWO fire pump truck

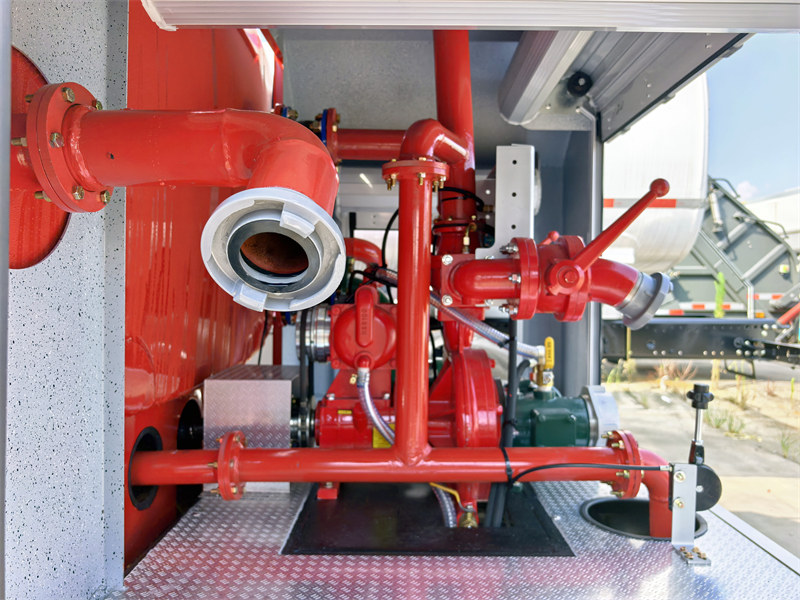

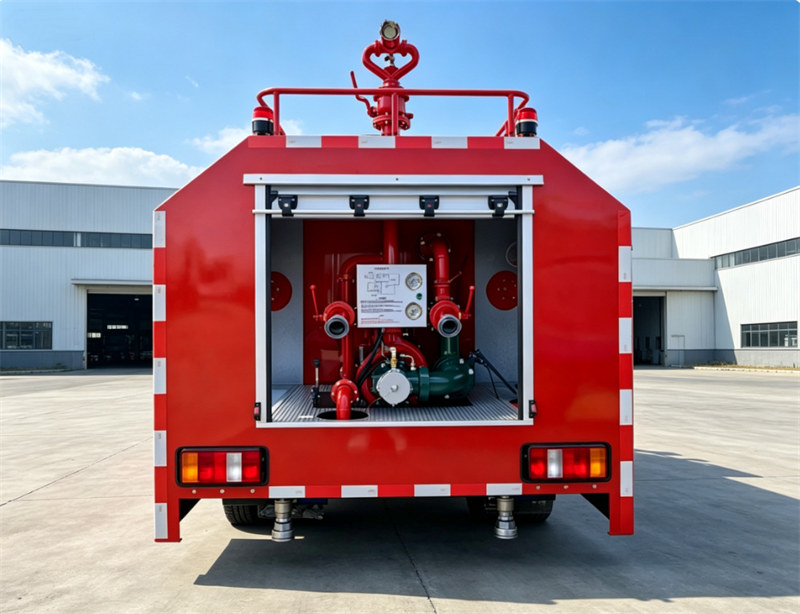

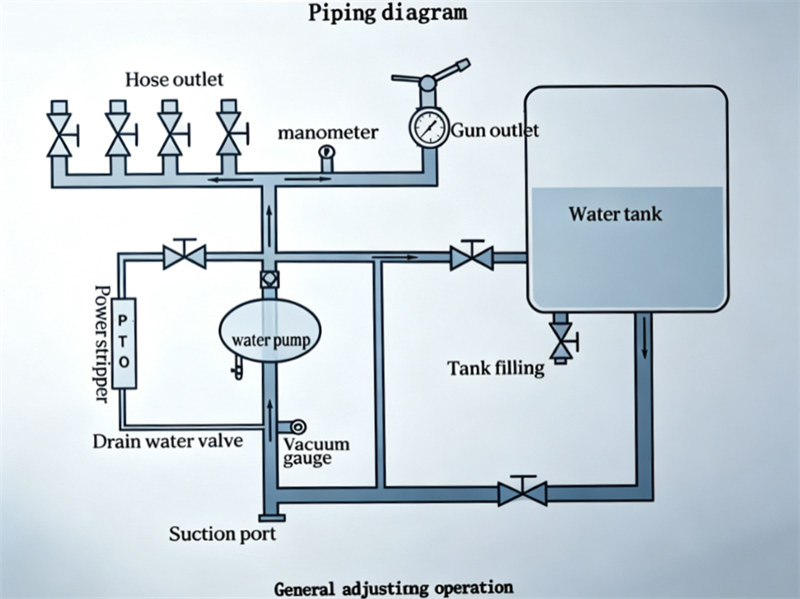

Powered by the truck’s PTO unit, this professional fire pump system serves as the core power source of the HOWO water‑tender fire truck. Supported by a complete, well‑designed piping network, it enables multi‑mode operations including tank‑to‑gun discharge, external water suction, tank refilling and multi‑hose outlet supply. Equipped with pressure and vacuum gauges for real‑time condition monitoring, the robust fire pump delivers stable high‑pressure water output. It supports simultaneous work of multiple outlets, allowing firefighters to carry out fire suppression, cooling and water supply tasks reliably, even under demanding emergency conditions.



HOWO fire pump truck



HOWO fire water tank truck



Fire pump Model

 FluxL/s

PressureMPa

Pump shaft speedrpm

Power(kw)

 Suction depth(m)

Max working pressure

CB10/20-XZ

20

1.0

3135±50r/min

34

  3

1.082MPa

14

1.3

3440±50r/min

35

-

10

1.0

3059±50r/min

22

7

-


  • HOWO fire water truck
  • HOWO fire water truck
  • HOWO fire water truck



⇒ Products--100% Customized Level One!
Transportation--100% Safety, Convenience, Efficient!
Services--7days + 24hours Safetify Service!


»»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



China professional HOWO special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO fire pump truck



HOWO fire water truck
