Casa Autocisterna Howo

HOWO NX 400HP fuel delivery bowser truck

HOWO NX 400HP fuel delivery bowser truck

Powered by a high-performance WP-series 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker boasts a maximum power output of 400 horsepower. It is matched with a 10-forward and 2-reverse speed transmission system and a reinforced diaphragm clutch assembly. This premium powertrain configuration provides robust power reserve and precise, responsive control, enabling the truck to adapt seamlessly to various complex road conditions and complete fuel transportation tasks efficiently and stably.

  • Capacità lavorativa :

    30000L
  • Tipo di cabina :

    HOWO NX single cabin, with one sleeper
  • Sistema di azionamento :

    8x4
  • Passo (mm) :

    1750+4600+1350
  • Specifico del motore :

    WP12S400E201
  • Cambio :

    HW19710C, 10 forwards & 2 reverses
  • Assale anteriore (kg) :

    7500*2
  • Assale posteriore (kg) :

    13000*2
Nuovi prodotti

Powered by a high-performance WP-series 6-cylinder in-line water-cooled turbocharged intercooled diesel engine, this HOWO fuel tanker boasts a maximum power output of 400 horsepower. It is matched with a 10-forward and 2-reverse speed transmission system and a reinforced diaphragm clutch assembly. This premium powertrain configuration provides robust power reserve and precise, responsive control, enabling the truck to adapt seamlessly to various complex road conditions and complete fuel transportation tasks efficiently and stably.

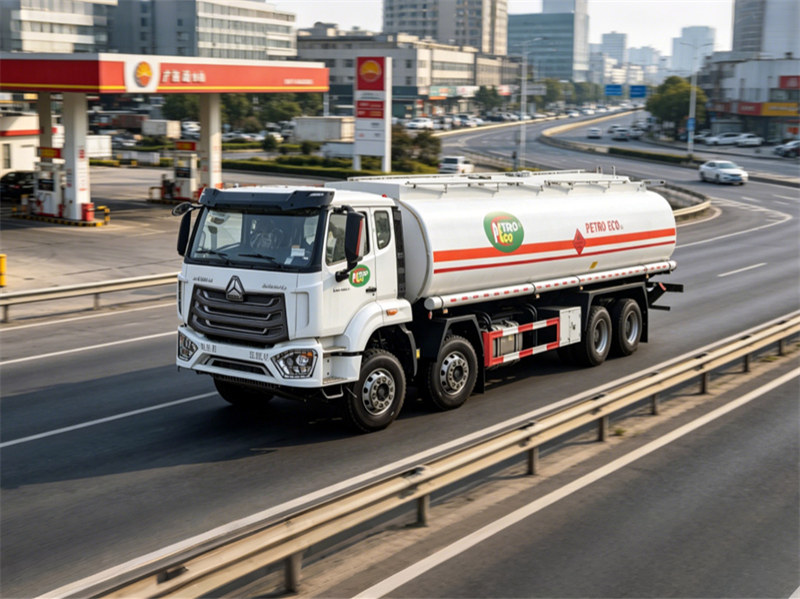

HOWO NX 30000L fuel tank truck

The tanker features a genuine 30,000-liter actual tank capacity to meet large-volume fuel transport demands. The tank body is constructed from high-quality Q345 carbon steel with a wall thickness of no less than 4mm, ensuring outstanding durability, pressure resistance and corrosion resistance for long-term service. Fitted with top-tier Chinese brand fuel pumps, valves and pipeline systems, along with a complete set of professional fuel distribution devices, the truck guarantees stable fuel delivery, high working efficiency and reliable operational safety.

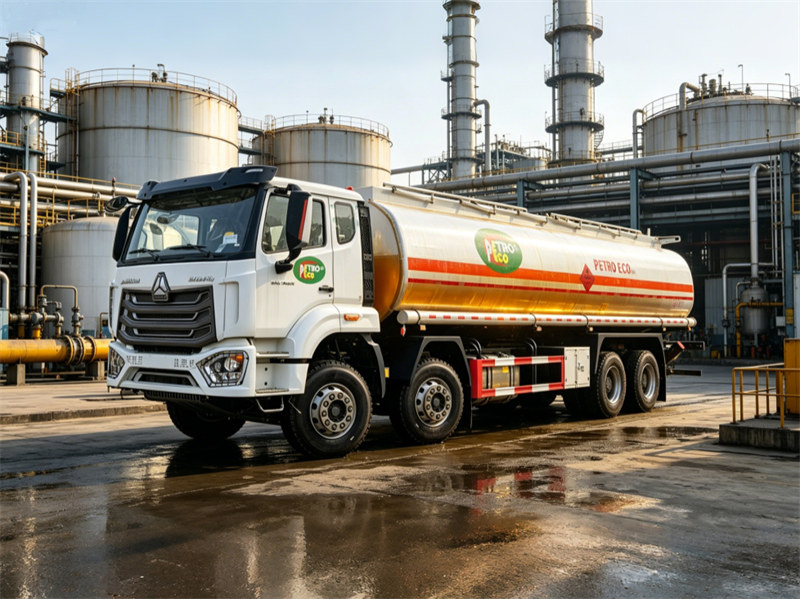

HOWO NX 30000L fuel tank truck

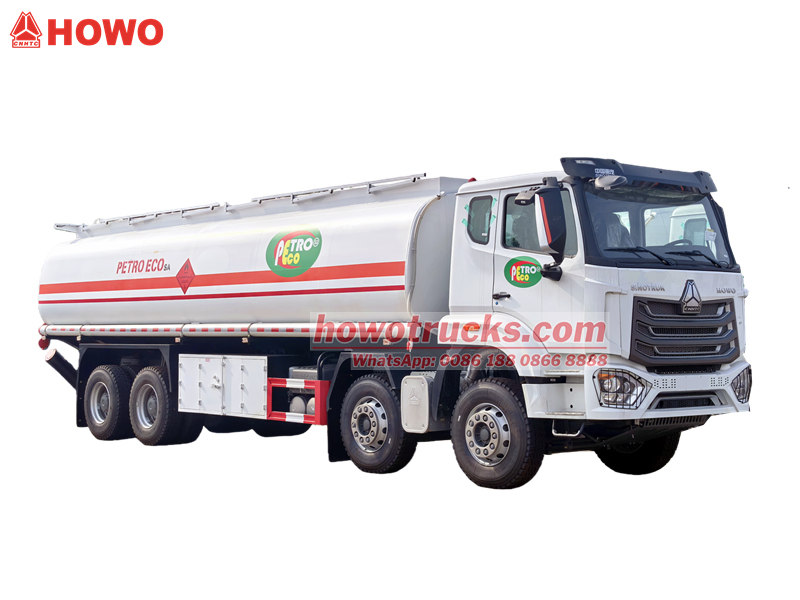

*HOWO NX 30000L Fuel Tank Truck*

------------------------------------------------------------------

CS Trucks Group is professional manufacturer in HOWO truck area,

guarantee all products Brand-New and High-Quality.



Ⅰ.Product Definition and Introduction « « «

Manufacturer: CS Trucks Group

Features:

 Truck Chassis: Sinotruk HOWO truck chassis,8x4, 8x8 model, WP model with 300HP,340HP,380HP,400HP... Euro 2,3



 Tank material: 6mm thick high-quality steel for prolonged service lier, carbon steel, aluminum alloy or stainless steel can be choose.



 Professional Compartment:The tank is divided into 6 compartments, which can simultaneously load oils of different grades or categories to avoid cross contamination and meet the transportation needs of multiple categories.

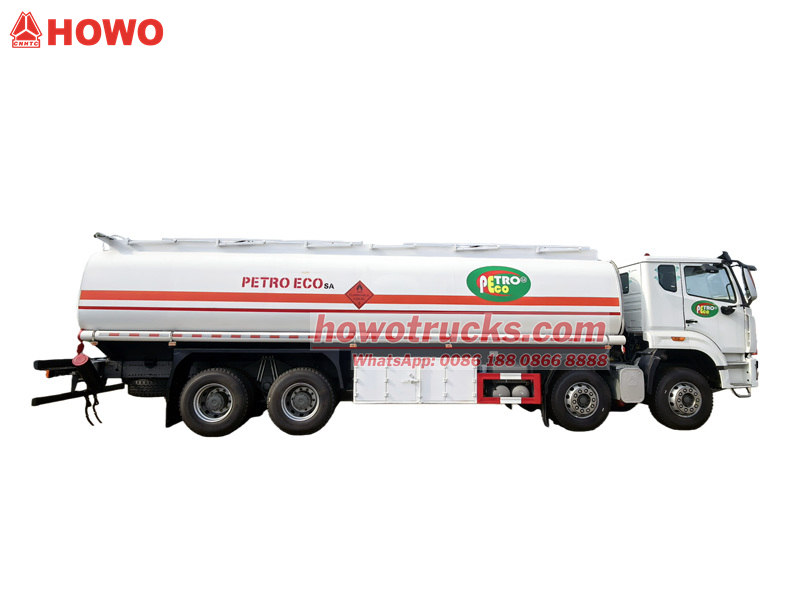

HOWO 30000L wildland fuel bowser truck



✦ Ⅱ.Product Parameter For HOWO NX Fuel Tank Truck  « « «

HOWO 30000L wildland fuel bowser truck

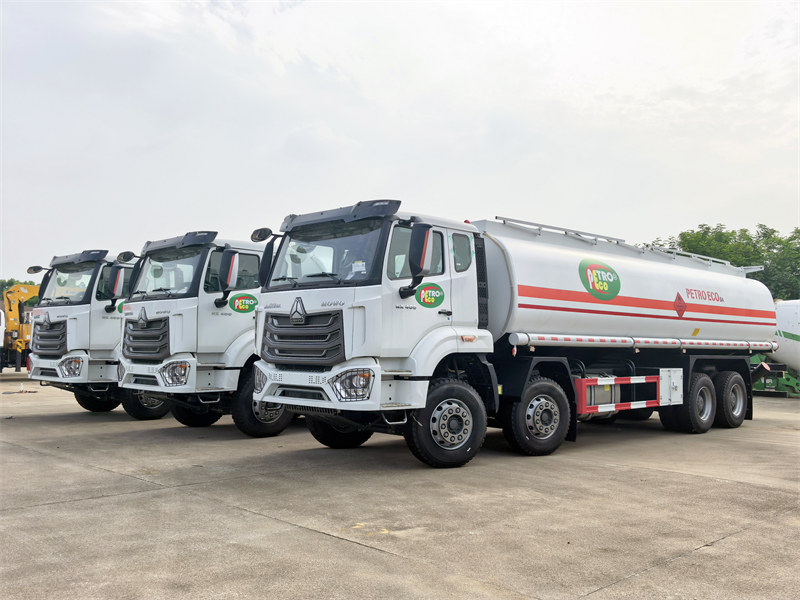

HOWO NX 30000L Fuel Tank Truck

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

HOWO

Overall Dimension

13800 * 2300 * 2650 mm

GVW / Kerb Weight

33,000kg / 16,800kg

Cab

Cab Capacity

2 people allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WP12S400E201

Power

400 HP

Displacement

12 L

Emission Standard

Euro 3

Chassis

Drive Type

8X4 (left/right hand drive)

Transmission

Manual 10 speed levers with 1 reverse

Wheelbase/No. of axle

1750+4600+1350 mm / 4

Tire Specification

12.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

30,000 Litres

Tanker Material

Carbon Steel (Q235)

Pump

Fuel pump equipped for overhead delivery

Suction head

7 m

Hose

High quality, wire strengthened hose, with cooper wire, anti-static

Refueling Machine

Equipped based on customer requirement

Control panel

English or Your language

All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers...

Optional

** Tank material could be carbon steel, stainless steel, aluminum (Aluminum tanker).

** It can be divided into many compartments.

** Imported American pump as optional.

** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge, etc

** Heat preservation & heating system could be added.

** Bottom loading system can be equipped.

HOWO NX 30000L fuel tank truck


✦ Ⅲ. Advantage For HOWO Fuel Tank Truck « « «



HOWO TX 20000L fuel tank truck

 Power and Heavy-Duty Performance Advantages:

♦ Powerful Engine for Complex Working Conditions: Equipped with an MC07.34-30 engine, delivering ample 340 horsepower, providing strong starting and climbing capabilities even on muddy, steep, and unpaved roads in regions like Africa.

 Compliant Heavy-Duty and Stable Load Bearing: With a gross vehicle weight of 25 tons and a tank volume of 20,000 liters, featuring a Q345 carbon steel tank body and 5mm thickened tank walls, it boasts strong load-bearing capacity and structural stability, meeting the needs of large-scale oil transfer.

♦ Highly Reliable Transmission System: The HW19710 10-speed gearbox with a reinforced clutch offers high transmission efficiency, durability, and a low failure rate under frequent start-stop and heavy-duty conditions.



HOWO TX 20000L fuel tank truck

Tank Body Structure:

Customizable tank shapes: round, oval, rectangular and trapezoidal for diverse applications.

The top comes complete with a manhole cover, breather valve, oil vapor recovery system and guardrails. A φ500 access opening is reserved for easy maintenance.

It features a bottom sediment tank and rear drain valve, alongside ladders and walkways for safe operation.

Internal cross baffles effectively reduce liquid sloshing during driving and enhance transport stability.



✦ Ⅳ.Fuel Pump System for Howo Fuel Tank Truck « « «

♦ The oil pump is driven by the engine power, output through the power take-off (PTO), and then via a drive shaft.

♦ The oil pump is connected to the chassis via a pump mounting bracket.



fuel pump fuel pump



♦ Depending on the specific application of the tanker truck, centrifugal pumps, gear pumps, stainless steel pumps, and high-polymer nylon pumps can be selected.

♦ Customers can also choose other models of self-priming pumps, and we can design and manufacture according to specific customer requirements.



fuel pump





Circular Arc Gear Oil Pump

Model

80YHCB-80

Pressure

0.7 MPa

Flow

80 m³/h

Power Supplied

11 KW

Rotational Speed

1170 r/min



    ✦ Ⅵ.Howo Fuel Truck Safety Protection Devices « « «

     The bottom of the oil tank is equipped with anti-static grounding tape to ensure a good static electricity discharge path between the vehicle and the ground during vehicle operation.

     A copper plate anti-static grounding terminal is welded to each side of the top or lower part of the oil tank. This terminal connects to the grounding device when the oil truck is loading or unloading, creating a static electricity discharge path between the tank and the ground.

     To prevent damage to the oil tank due to excessively high or low pressure, a vent valve is installed on the manhole at the top of the tank.

     Fire extinguishers are provided on both sides of the oil tank.



    • HOWO TX 20000L fuel tank truck
    • HOWO TX 20000L fuel tank truck
    • HOWO TX 20000L fuel tank truck



    ✦ Ⅴ.HOWO Fuel Bowser Truck Pipeline Operation System « « «

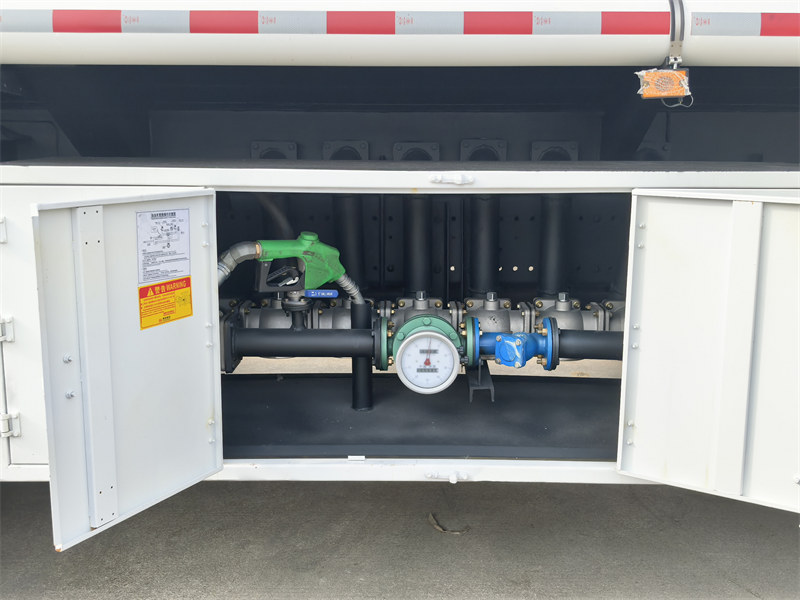

    The control box is mounted at the tank lower section, integrating three-way ball valve, flow meter, dual filters, CRJ quick couplings, pressure and vacuum gauges.Dedicated gauges monitor pump inlet vacuum and outlet pressure in real time, keeping the oil delivery system operating stably.

    HOWO TX 20000L fuel tank truck



     Pump out:

    (1) Turn the four-position three-way ball valve mark point to the direction of forward B);

    Note: four-position three-way Ball Valve marks the direction of the direction of the valve closed, the other two sides for each other

    (2) Open two-way Ball Valve 1to pump oil;

    (3) If using a refueling machine,close the two-way Ball Valve 1 and open the small copper valve,according to the specification of the tefueling machine set procedures can be achieved refueling refueling machine.

    ♦ Pump in:

    (1) Connecting the two-way Ball Valve 2 with an oil pipeline and an oil source;

    (2) After turning the mark point of the four-position three-way ball valve to(c).the other valves are closed to realize self-priming.

    (3) Other functions:The user can adjust and realize various functions according to the oll circult principle.



    • HOWO NX 20000L fuel tank truck
    • HOWO TX 20000L fuel tank truck
    • HOWO TX 20000L fuel tank truck



    ✦ Ⅵ.HOWO Fuel Bowser Truck Pipeline Operation System « « «

    1. Large 30,000L Optimized Tank Capacity & Payoff Efficiency

    Standardized 30,000L tank volume balances maximum liquid fuel load and cross-border road weight compliance for most global markets.

    Segmented anti-sloshing baffle design inside the tank drastically reduces liquid surge during acceleration, braking and cornering. This enhances driving stability and cuts wear on chassis components.

    Maximized single-trip transport volume slashes delivery frequency, lowering overall fuel, labor and logistics operational costs for fuel distributors.



    HOWO NX 30000L fuel tank truck



    2. Heavy Duty Robust Chassis Built for Diverse Global Road Conditions

    Reliable heavy duty 8x4 commercial truck chassis with powerful, low-emission engine options adaptable to different national emission standards.

    Reinforced suspension and heavy-load wheel hubs deliver outstanding load-bearing performance, capable of handling rough rural, suburban and urban road networks across Africa, Southeast Asia and Latin America.

    Mature brake system including ABS and dedicated retarder for stable, safe braking under full 30,000L loaded weight, meeting international hazardous goods transport safety codes.



    HOWO NX 30000L fuel tank truck




    ⇒ Products--100% Customized Level One!
    ⇒ Transportation--100% Safety, Convenience, Efficient!
    ⇒ Services--7days + 24hours Safetify Service!


    »»» CS trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



    China professional HOWO fuel tank truck supplier and exporter. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



    ♦ Maximize save your sea freight.

    ♦ Professional guidance on your importing documents.

    ♦ Safety, Quickly, Timely



    HOWO NX 30000L fuel tank truck



    HOWO NX 30000L fuel tank truck
