HOWO NX 16000L Combined Sewer Cleaner Truck

HOWO NX 16000L Combined Sewer Cleaner Truck

The HOWO 6×4 septic tanker truck, built for efficient sewage suction and high-pressure cleaning. Fitted with a 16m³ combined carbon steel vacuum tank (10m³+6m³), 370HP Euro 3 engine and PN106D vacuum pump, this heavy duty unit delivers strong vacuum performance, fast suction and reliable dumping. It supports left hand or right hand drive, with multiple optional upgrades including stainless steel tank and imported vacuum pump, ideal for sewer cleaning, sludge collection and wastewater disposal projects.

  • Capacità lavorativa :

    16000 liters
  • Tipo di cabina :

    HOWO NX single cabin with sleeper and A/C
  • Sistema di azionamento :

    6×4
  • Passo (mm) :

    9600*2530*3250 mm
  • Specifico del motore :

    370HP/WD615.47
  • Cambio :

    HW19710, 10 Forward & 2Reverse
  • Assale anteriore (kg) :

    7.5T
  • Assale posteriore (kg) :

    13 T*2
Nuovi prodotti

The HOWO 6×4 septic tanker truck, built for efficient sewage suction and high-pressure cleaning. Fitted with a 16m³ combined carbon steel vacuum tank (10m³+6m³), 370HP Euro 3 engine and PN106D vacuum pump, this heavy duty unit delivers strong vacuum performance, fast suction and reliable dumping. It supports left hand or right hand drive, with multiple optional upgrades including stainless steel tank and imported vacuum pump, ideal for sewer cleaning, sludge collection and wastewater disposal projects.

HOWO NX cleaning sewage tank truck



*HOWO NX Cleaning Sewage Tanker Truck

 SINOTRUK HOWO 16000L Vacuum Sewage Truck*

-----------------------------------------------------------------



CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.





✦Ⅰ.Product Defination and Introduction «««

Manufacturer: CS TRUCKS Group

Features:

✅ Dual-compartment vacuum tank: 10m³ + 6m³, total 16m³ capacity

✅ HOWO NX single-row cab with air conditioning, comfortable operation

✅ 370HP Euro 3 WD615.47 diesel engine, strong power output

✅ Fast suction: ≤5 mins, effective suction range over 8m

✅ Hydraulic tipping tank (40–45°), hydraulically operated rear door

✅ Complete standard fittings: inspection window, suction hose, overflow valve etc



HOWO NX cleaning sewage tank truck



✦Ⅱ.Parameter for HOWO Sewage With Jetting Truck «««

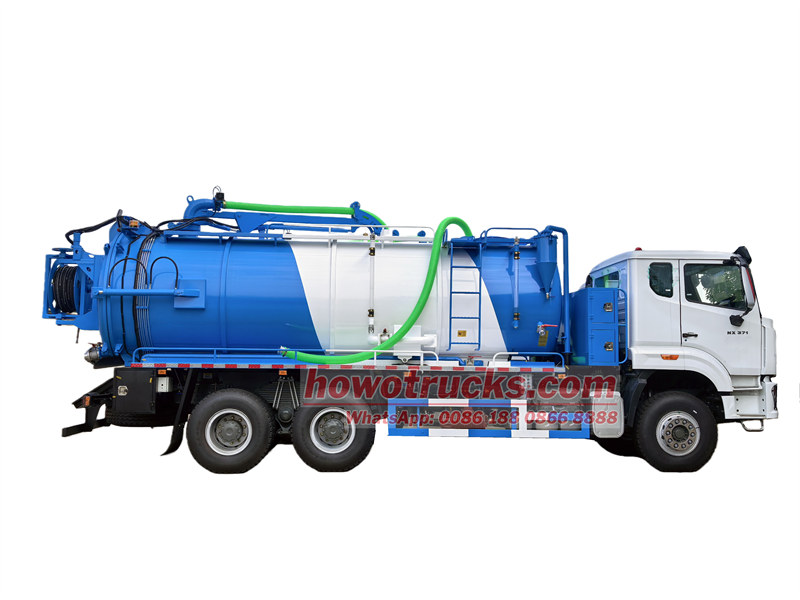

HOWO 6x4 Vac-Jet Truck





HOWO 6x4 Vac-Jet Truck

Vehicle Description

Overall dimensions

9800*2530*3350mm

GVW

28000kg

Curb weight

14800kg

Sewage tank (m3)

10+6

Drive system

6*4

Chassis Description

Chassis brand

HOWO

Steering

LHD/RHD

Cab

HOWO NX,single row, 2 seats,with A/C

Wheelbase

4600+1350mm

Tire specification

12.00R20

Tire quantity

10 tires and 1 spare tire

Engine

Engine model

WD615.47

Emission level

EURO 3

Displacement

9.8L

Horse power

370HP

Maximum torque

1500N·m

Fuel

Diesel

Gear box

Model

HW19710

Number of gears

10 speed

Brake system

Air break

Axle

Front

7.5T

Rear

13T*2

Fuel tanker

Type

Stainless steel

Capacity

400L

Tanker Description

Tanker



Capacity

10000+6000 Liters

Material

6mm thickness, high quality carbon steel

Structure

Welding, vacuum tank, Cylindrical

Vacuum Pump



Model

PN 106D

Max Speed

1300(r.p.m)

Max Pressure

1,5 ABS

Max Vacuum Level

-0.095

Features

Low speed, low fuel consumption, low noise, high vacuum, high efficiency

High Pressure Water Pump

Pump Type

3N2

Max Pressure

240 Bar/PSI

Pump Speed

405 R/MIN

Max Flow

170 L/min/GPM

Plunger DIA

45 MM/INCH

Plunger Stroke

95 MM/INCH

Special function

Suction time ≤ 5min,

effective suction range ≥ 8,

Max vacuum degree ≤ 15 KPa,

dump angle ≥ 45°

Standard configuration

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators,overflow valve,etc.

Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.

Optional configuration

Tanker material: stainless steel.

Vacuum pump: China or Spain vacuum pumps.

Anti-rust coating inside tank

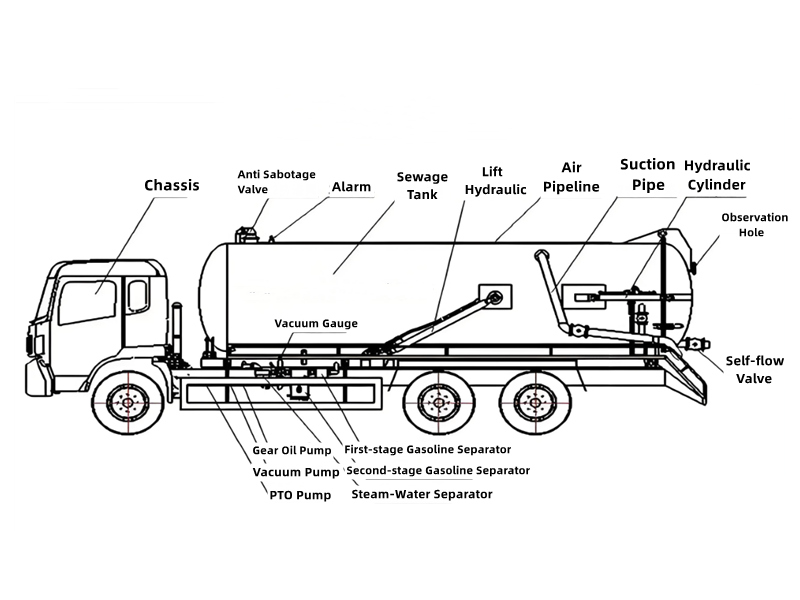

HOWO heavy 16CBM vacuum sewage tank truck



✦Ⅲ.Sewage Tank Manufacturing Feature «««

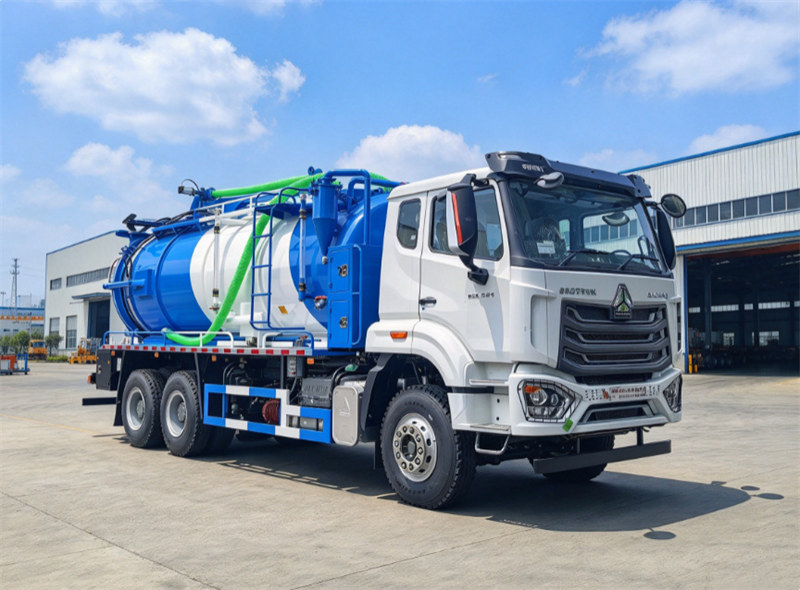

HOWO 16000L sewage tank truck

1. Powerful Suction & Cleaning System:

♦ PN106D vacuum pump: high vacuum, low noise and low fuel consumption

♦ 3N2 high-pressure water pump, up to 240Bar for pipeline dredging

♦ Fast suction within 5 minutes, long effective suction distance

♦ Stable vacuum degree, excellent for sludge and sewage collection

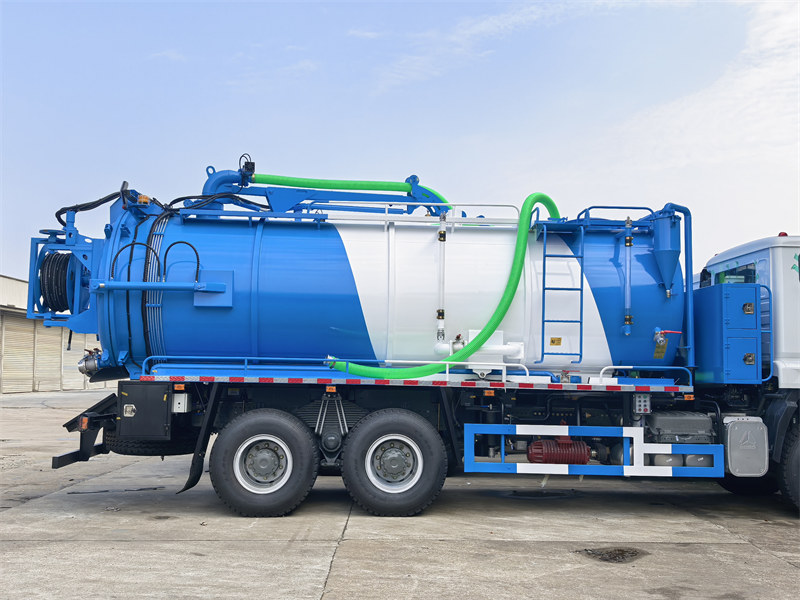

HOWO 16000L sewage tank truck

2. Large Capacity Tank:

♦ 10m³ + 6m³ separate tank design, total 16m³ volume

♦ 6mm thick carbon steel tank, optional stainless steel material

♦ Hydraulic tipping up to 45°, hydraulic rear door for quick discharge

♦ Equipped with inspection window, overflow valve and oil-water separator for safety



HOWO 6x4 Vac-Jet Truck

3. Reliable HOWO Heavy Duty Chassis:

♦ 370HP WD615.47 Euro 3 diesel engine, strong power

♦ 10-speed HW19710 gearbox, stable transmission

♦ 6×4 drive layout, GVW 28000kg, great load capacity

♦ Air brake system, reliable braking performance on tough sites

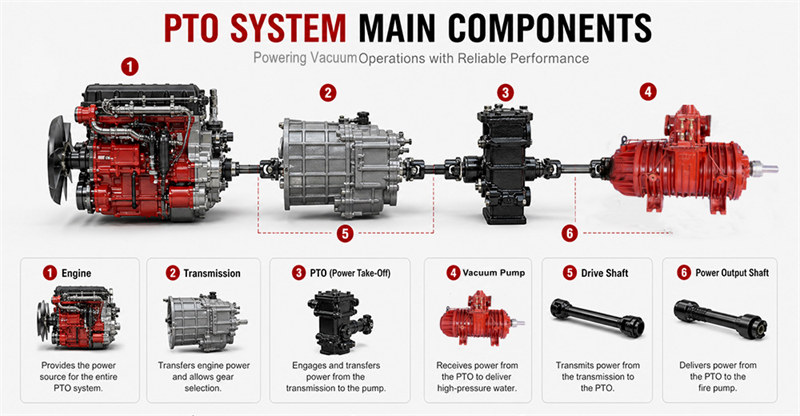

✦Ⅳ.Suction Capacity and Sealing Performance «««



HOWO 6x4 Vac-Jet Truck

1. JUROP pumps utilize optimized flow path design and precision rotor machining technology to establish extremely high vacuum levels.

2. Key components of JUROP pumps, are made of high-strength, wear-resistant alloys or treated with special coatings, providing exceptional resistance to wear and corrosion.

3. JUROP pumps are designed with thermal management in mind. An optimized structure promotes heat dissipation, preventing performance degradation or damage due to excessive temperatures.



vacuum pump truck



JUROP (PNR 106D) rotary vacuum pump

Specification

Unit

Value

Free air capacity

cfm

424

Air capacity at 15" Hg/50% vacuum

cfm

312

Max. Vacuum

Hg (in.)

28

Continuous Duty Vacuum

Hg (in.)

18

Max. Pressure

Bar

1.5

Power required at 15" of vacuum

hp

15.5

Power required at max. pressure

hp

41

Rotation speed

rpm

1300

Oil tank capacity

quart(us)

4

Suggested Tank Size

Gallons

1000-4000

Oil consumption

gal (US)/Hr

0.05

Sound pressure at 7 meters (23 ft) 60% vacuum

dB

79

Hose

in

3

Flange

in

-

Weight

lbs

357



vacuum pump truck

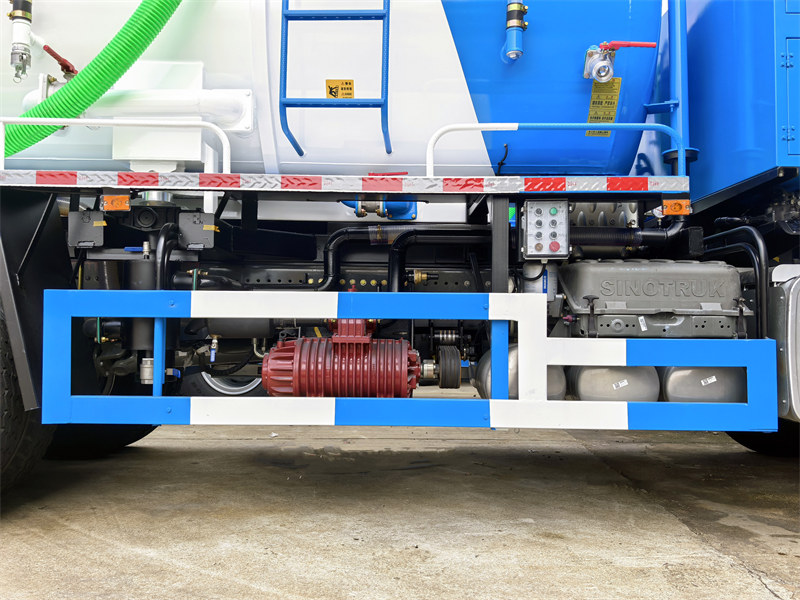

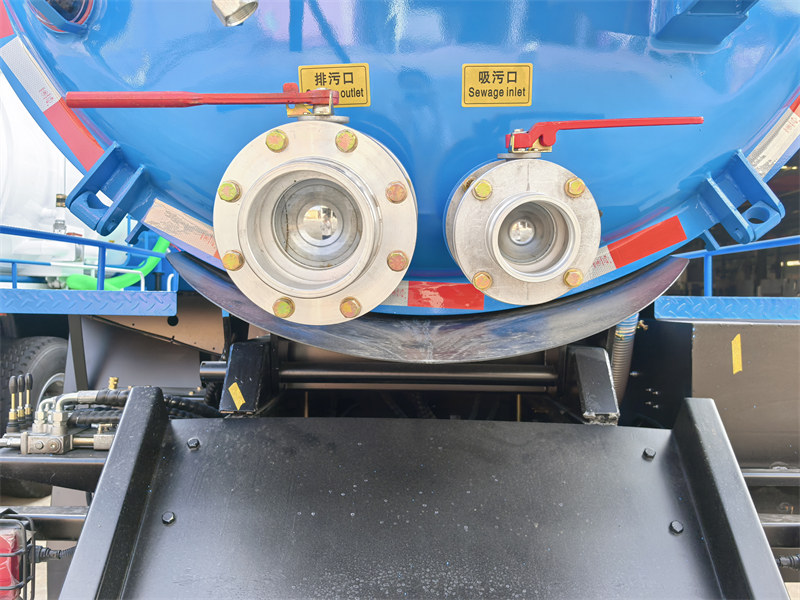

  • HOWO vacuum pump sewage truck
  • HOWO vacuum pump sewage truck
  • HOWO vacuum pump sewage truck



HOWO M7 sewage tank truck



HOWO M7 sewage tank truck



HOWO M7 sewage tank truck

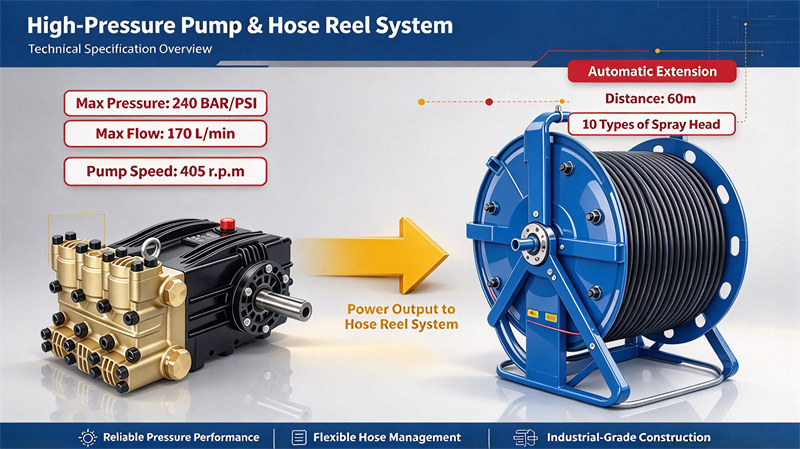

✦Ⅴ.Cleaning Pump For HOWO Vac-Jet Truck «««

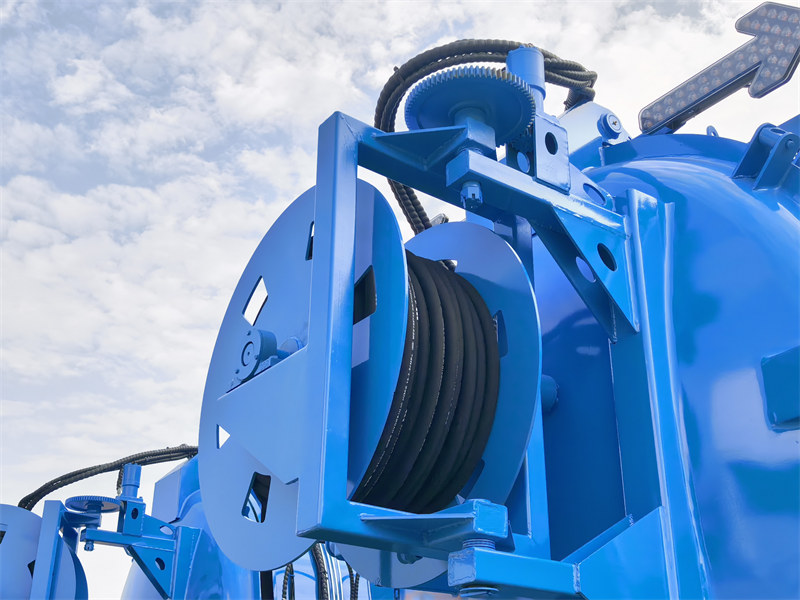

High-pressure cleaning module for vacuum sewage trucks delivers powerful jetting to break up hardened sludge, flush blocked pipelines and thoroughly clean tank interiors. Paired with the auto-retracting 60m hose reel, it extends operating range flexibly. With stable high pressure and multiple nozzle options, it improves cleaning efficiency, cuts manual work and keeps the vacuum truck ready for repeated suction operations.



HOWO NX cleaning sewage tank truck

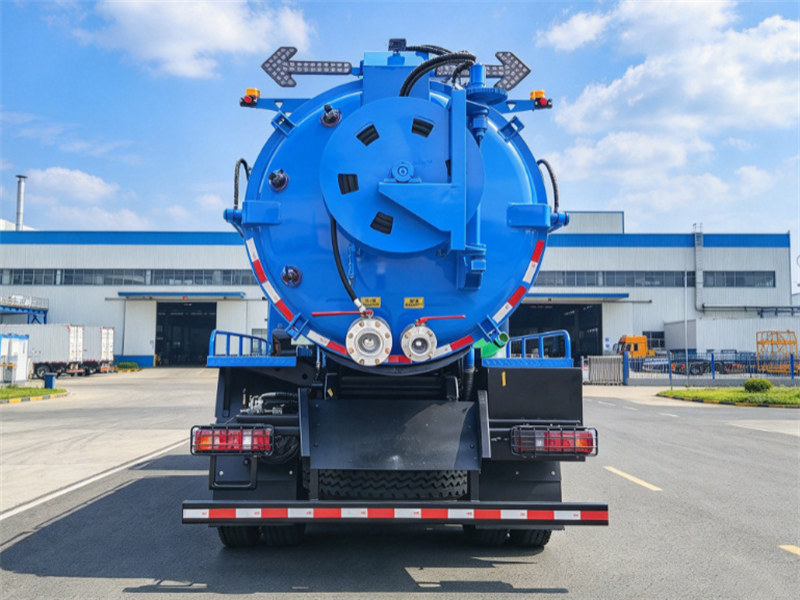

  • HOWO NX sewage vacuum tank truck
  • HOWO NX sewage vacuum tank truck
  • HOWO NX sewage vacuum tank truck






⇒ The production capacity of over 4,000 trucks every year.



⇒ Over 100 countries worldwide.



⇒ Complete after-sales service system.



We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.





China professional HOWO special truck supplier and exporter, we supply high quality HOWO special truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our HOWO trucks are sold to more than 80 countries including: Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



♦ Maximize save your sea freight.

♦ Professional guidance on your importing documents.

♦ Safety, Quickly, Timely



HOWO 16000L sewage vacuum tank truck



Howo 16000L sewage vacuum tank truck
