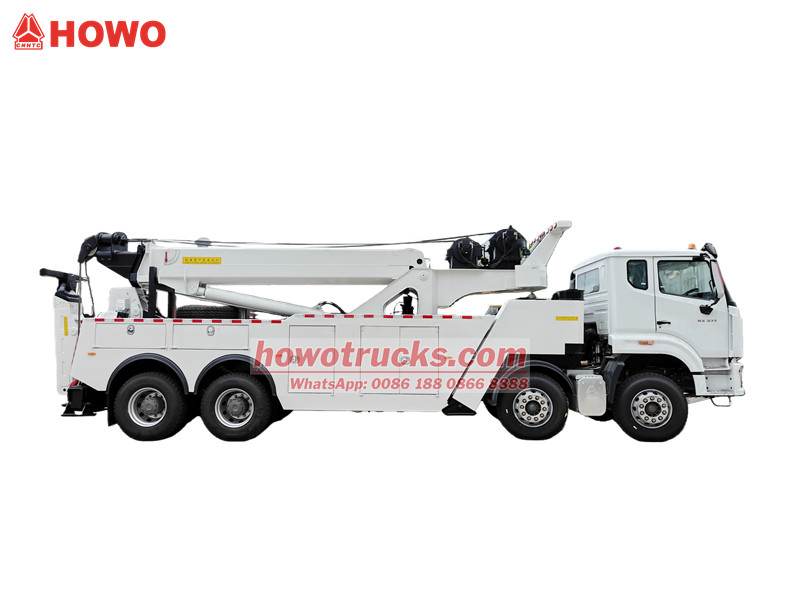

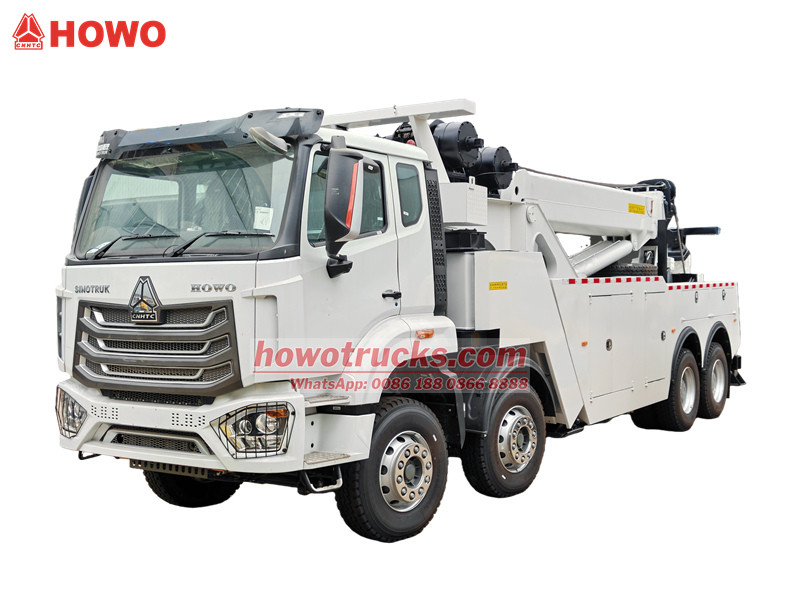

Built on a Sinotruk HOWO NX 8x4 heavy chassis, this professional rescue wrecker runs on a 370HP WD615.47 diesel engine paired with a 10-speed HW19710 transmission. Fitted with a 7.5 ton front axle and 16-ton rear axle, it delivers unmatched hauling strength and long-term durability.Outfitted with dual 12 ton hydraulic winches and heavy duty hydraulic outriggers (10.5 ton single lift capacity), it boasts a maximum 30 ton rated towing load, perfectly suited for recovering crashed semi-trucks, coaches and construction machinery.Complete with a premium HOWO NX luxury cabin, 400L large fuel tank, 24V electric system, full warning strobe light sets and integrated tool storage boxes, this all-in-one heavy rescue tow truck brings powerful performance and full featured reliability for commercial roadside recovery work.
Capacità lavorativa :
25 tonsTipo di cabina :
HOWO HW76Dimensione (mm) :
11400×2500×3300Sistema di azionamento :
8×4Passo (mm) :
1800+4600+1350Specifico del motore :
370HP/WD615.47Cambio :
HW19710Assale anteriore (kg) :
7500*2 kgAssale posteriore (kg) :
13000*2 kgOsservazione :
HOWO NX, rotator boom, RHD is optionalBuilt on a Sinotruk HOWO NX 8x4 heavy chassis, this professional rescue wrecker runs on a 370HP WD615.47 diesel engine paired with a 10 speed HW19710 transmission. Fitted with a 7.5 ton front axle and 16-ton rear axle, it delivers unmatched hauling strength and long-term durability.
Outfitted with dual 12 ton hydraulic winches and heavy duty hydraulic outriggers (10.5 ton single lift capacity), it boasts a maximum 30 ton rated towing load, perfectly suited for recovering crashed semi-trucks, coaches and construction machinery.Complete with a premium HOWO NX luxury cabin, 400L large fuel tank, 24V electric system, full warning strobe light sets and integrated tool storage boxes, this all-in-one heavy rescue tow truck brings powerful performance and full featured reliability for commercial roadside recovery work.


CS TRUCKS is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
✦Ⅰ.Product Defination and Introduction:
Manufacturer: CS TRUCKS
Product Features
1. Powerful & Reliable: Built on the HOWO 8x4 heavy duty chassis and equipped with a high-horsepower Weichai engine and 10 gear transmission, it ensures stable operation and reliable performance even under full-load conditions.
2. Integrated & Versatile: Its integrated towing-lifting design combines lifting, supporting, and towing functions, enabling it to independently handle various complex rescue missions and significantly improve operational efficiency.
3. Efficient & Capable: Equipped with boom and a dual winch system that supports coordinated operation, it can swiftly execute rescue tasks such as uprighting overturned vehicles and retrieving ones from deep ditches.
4. Flexible & Adaptive: Featuring a telescopic and luffing boom alongside a multi-directionally adjustable under-lift, it effectively handles stranded vehicles in various positions and postures, adapting to complex on-site environments.
5. Safe & Secure: With scientific axle load distribution and high capacity hydraulic outriggers, it provides a solid and reliable foundation for heavy duty towing operations, ensuring overall worksite safety.

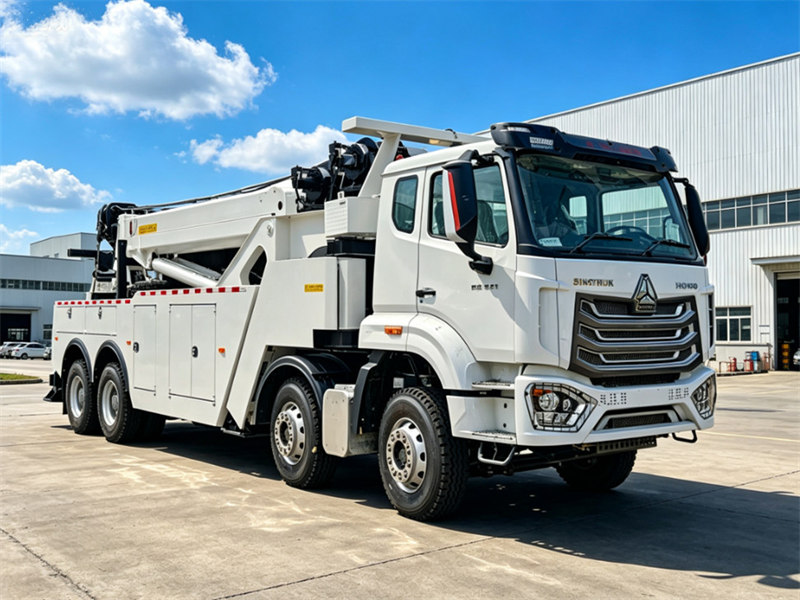

✦Ⅱ. Product Parameter for HOWO 12 Wheeler Tow Truck:

|

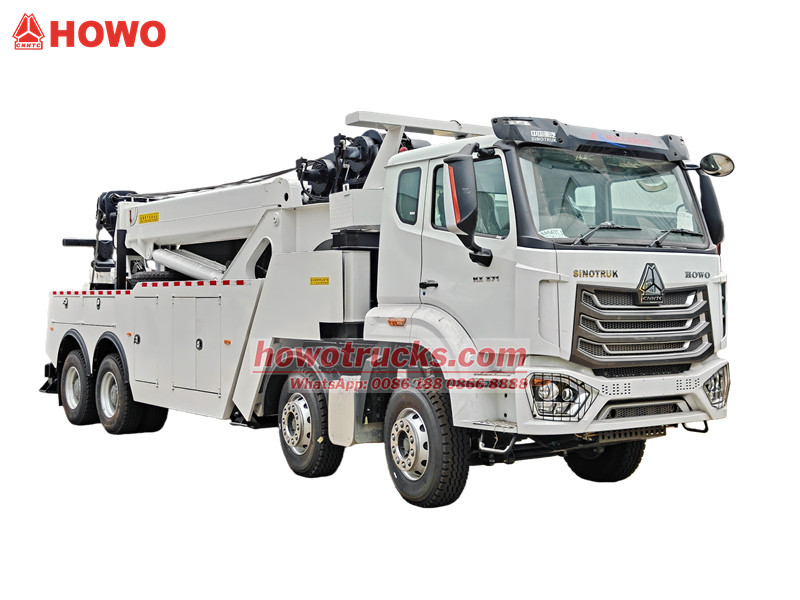

HOWO NX Heavy 40tons Tow Truck |
||||
|
Chassis parameters |
||||
|
Chassis brand |
SINOTRUK |
Vehicle brand |
CS Group |
|
|
Overall dimensions |
10900X2580X3325mm |
Wheel base |
1750+4300+1350 mm |
|
|
Approach/departure angle |
16/19° |
Maximum speed |
90km/h |
|
|
Cab |
Configuration |
NX a row and a half deluxe cab(with sleeping berth), allowable 2 passengers |
||
|
Color |
White, other color is optional |
|||
|
Engine |
Model |
WD615.47 |
||
|
Emission |
Euro 3 |
|||
|
Type |
6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine |
|||
|
Rated power |
371hp, rated power speed 2200rpm |
|||
|
Displacement |
9.726L |
|||
|
Max.torque |
1400N.m |
|||
|
Bore x stroke |
126x155mm |
|||
|
Manufacturer |
HOWO |
|||
|
Tire |
Size |
12.00R20 |
||
|
Number |
12+1 nos |
|||
|
Clutch |
φ430 diaphragm clutch |
|||
|
Fuel tank |
400L iron oil tank |
|||
|
Front axle |
7.5*2 tons |
|||
|
Rear axle |
13*2 tons |
|||
|
Drive form |
8X4 |
|||
|
Suspension |
Multi leaf springs |
|||
|
Rated voltage |
24V, DC |
|||
|
Transmissions |
Gearbox HW19710,10 speed forward 2 reverse. |
|||
|
Steering device |
Power assisted steering |
|||
|
Steering wheel |
Left hand drive |
|||
|
Wrecker structure parameters |
||||
|
Outriggers |
Rated Lifting Weight |
10500 kg |
||
|
Rated Lifting Fully Extended Weight |
4500 kg |
|||
|
Longitudinal Span between Front Outrigger and Rear Outrigger |
7350 mm |
|||
|
Transverse Span of Front Outriggers |
5490 mm |
|||
|
Transverse Span of Rear Outriggers |
4387 mm |
|||
|
Rated Towing Weight |
18000 kg |
|||
|
Crane Lifting Weight |
10000 kg |
|||
|
Length of Cable Wire |
25 m |
|||
|
Equipment |
High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 15ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories |
|||

✦ Ⅲ. Product Details & Feature:
1. Powerful & Reliable Chassis Powertrain:
♦ Sinotruk HOWO 8x4 drive chassis, 7.5t front + 13t double rear axles
♦ 371hp WD615.47 turbo diesel engine, peak torque 1400N·m
♦ HW19710 10-speed transmission, stable heavy-load output
♦ 400L large fuel tank for long-distance rescue missions
♦ Max speed up to 90km/h, Euro 3 emission standard

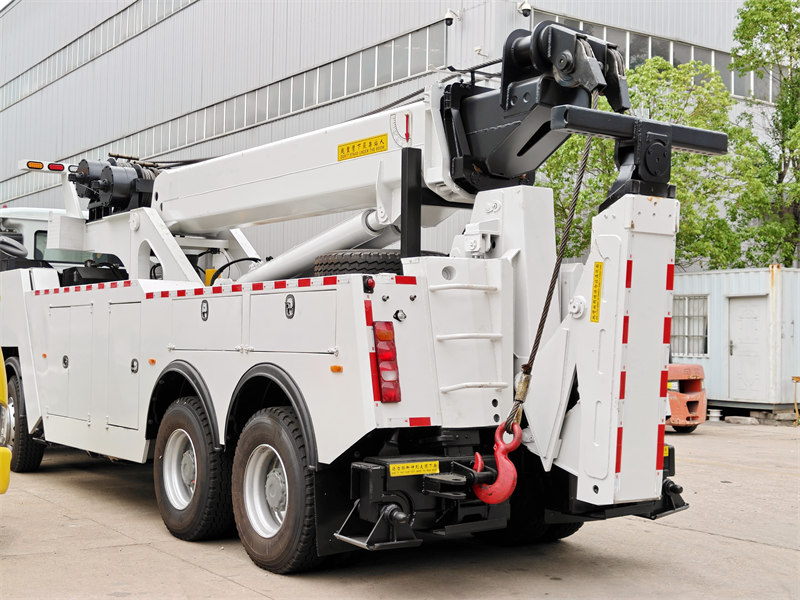

2. Heavy-Duty Towing & Lifting Capacity:
♦ Rated towing capacity: 18 tons; max crane lifting load: 10 tons
♦ Dual 15-ton hydraulic winches with 25m long steel cables
♦ Heavy hydraulic outriggers: 10.5t single lift rating, wide support span
♦ Wide longitudinal & transverse outrigger span for stable heavy recovery
♦ Single-stage telescopic lifting arm for flexible wreck handling

3. Comfortable & Fully Equipped Rescue Setup:
♦ NX deluxe half-row cab with sleeper, seats 2 crew, white as standard
♦ 24V DC electrical system, full warning lights & dual floodlights
♦ Power-assisted left-hand steering, 12+1 pcs 12.00R20 heavy tires

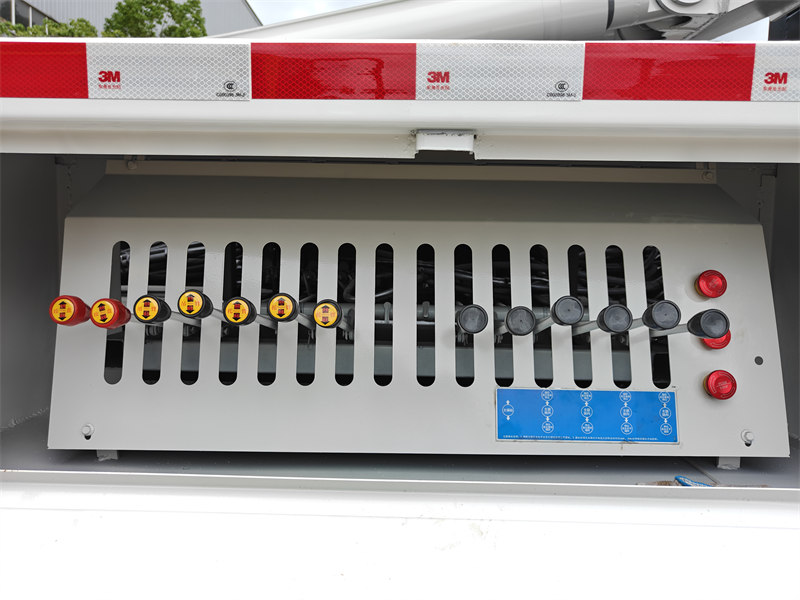

♦ Integrated tool storage box & complete manual control gear
♦ Customizable body color to match your fleet identity
✦ Ⅳ. Product Applications:

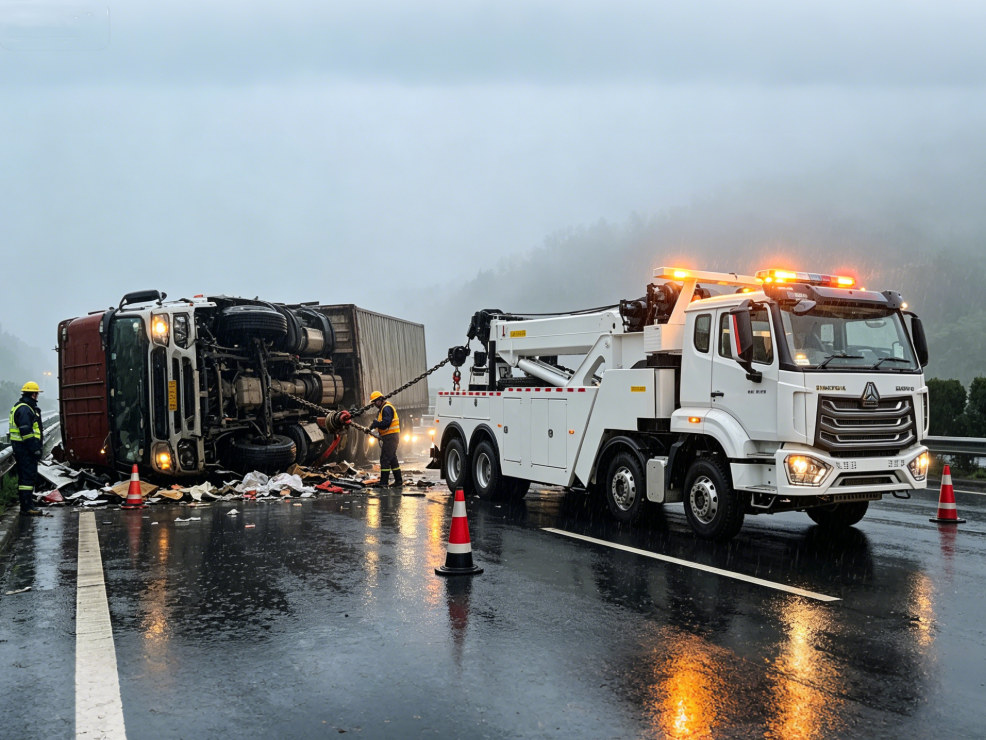

1. Disasters or accidents often block roads with debris, wrecked vehicles, etc. The HOWO heavy wrecker truck, with its powerful towing, lifting, and clearing capabilities, can quickly remove heavy obstacles.
2. Hazardous materials vehicle accidents, suspended or unstable heavy vehicles/components, etc., are themselves high-risk sources. The HOWO heavy wrecker truck can safely and efficiently handle and transfer them professionally.
3. Emergency on-site rescue equipment (such as construction machinery and generator trucks), if malfunctioning or stuck, will seriously affect the overall operation. The HOWO NX tow truck has the capability to quickly rescue and transport heavy equipment.

We CS TRUCKS also supply spare parts (original, OEM, and replacement) for all types of HOWO special trucks and trailers with discount and high quality to ensure our customer's trucks and trailers being in good working conditions.
Manufactured at our professional heavy-duty vehicle factory, this HOWO 8×4 integrated wrecker truck adopts Sinotruk genuine chassis. We own full CNC machining, hydraulic assembly lines & strict quality inspection systems. Powerful towing & lifting capacity, durable all-terrain design, fully customized for global road rescue business.

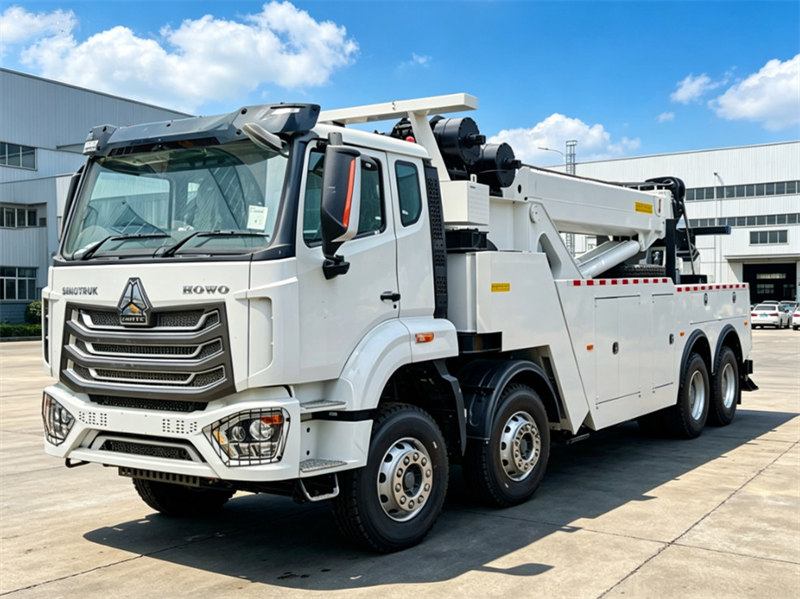

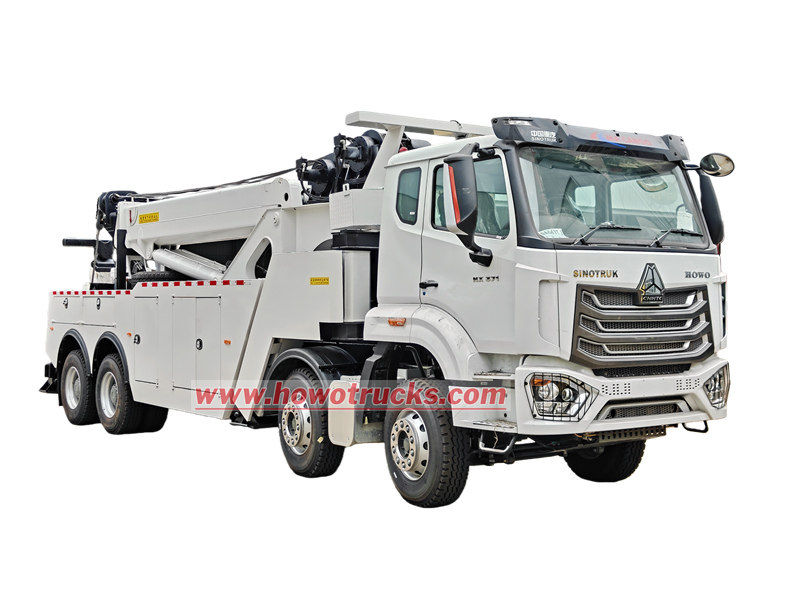

SINOTRUK HOWO 40 ton tow trucks for export

SINOTRUK HOWO recovery trucks ready for delivery
